Fuel Injector Circuit: Wiring Diagram

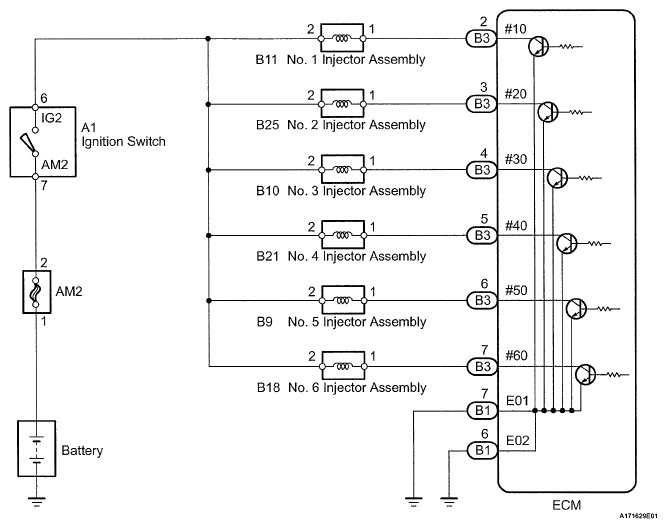

Fig 1: Identifying Fuel Injector Circuit Diagram
G05577315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
