Removal

DOOR LOCK: DOOR CONTROL TRANSMITTER (w/ Smart Key System): REMOVAL

REMOVAL

1. REMOVE TRANSMITTER BATTERY

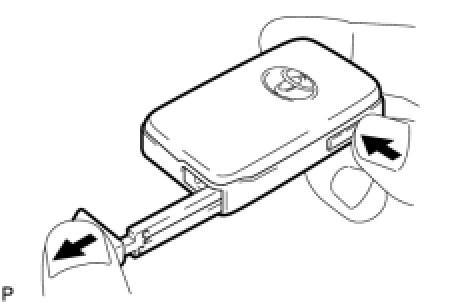

(a) Remove the mechanical key.

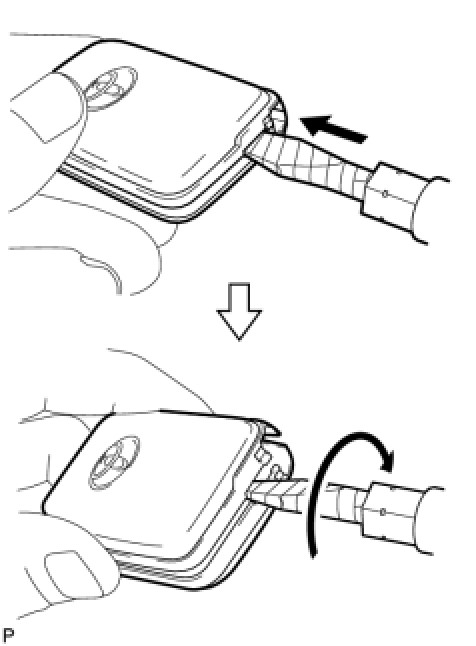

(b) Insert a screwdriver into the gap, and turn the screwdriver to detach the cover.
HINT: Tape the screwdriver tip before use.

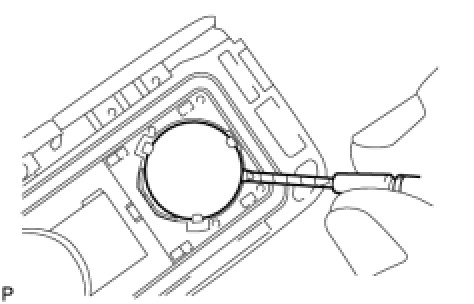

(c) Insert a screwdriver into the gap and gently remove the battery (lithium battery).

NOTICE:
- Do not push the terminals with your finger.
- Do not forcibly pry up the battery (lithium battery) because doing so will deform the terminals.
- Do not touch the battery with wet hands. Water may result in corrosion.
- Do not touch or move any components inside the transmitter because handling the components may interfere with proper operation of the transmitter.
