Installation

DOOR LOCK: DOOR CONTROL TRANSMITTER (w/o Smart Key System): INSTALLATION

INSTALLATION

1. INSTALL TRANSMITTER BATTERY

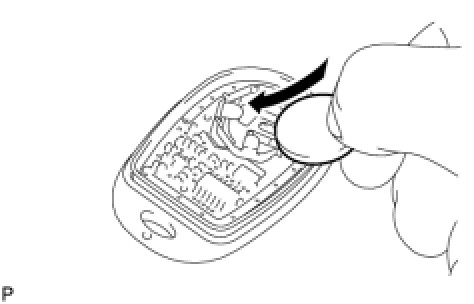

(a) Install a new battery (lithium battery) with the positive (+) side up, as shown in the illustration.

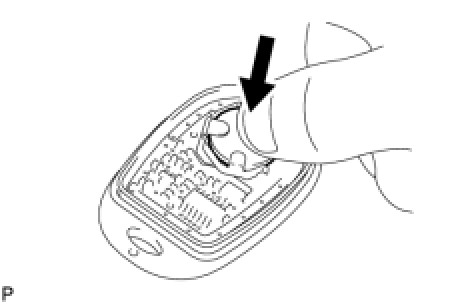

(b) Press down gently on the battery to set it in place.

NOTICE:
- Be careful not to bend the transmitter battery electrode during insertion.
- Keep the transmitter cover interior free of dust and oil.

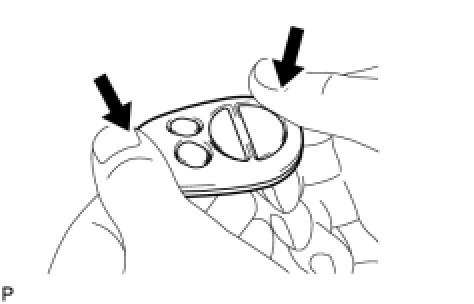

(c) Install the case securely.
