Installation








AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

INSTALLATION

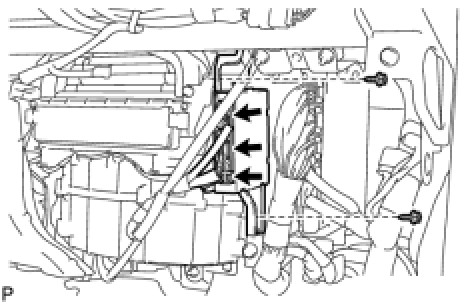

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY





(a) Install the air conditioning amplifier assembly with the 2 screws.
(b) Connect each connector.
2. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/ Smart Key System) Installation
3. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation
4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation
6. INSTALL FRONT DOOR SCUFF PLATE RH Installation
