1AR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR





(a) Install a new gasket to the sensor.

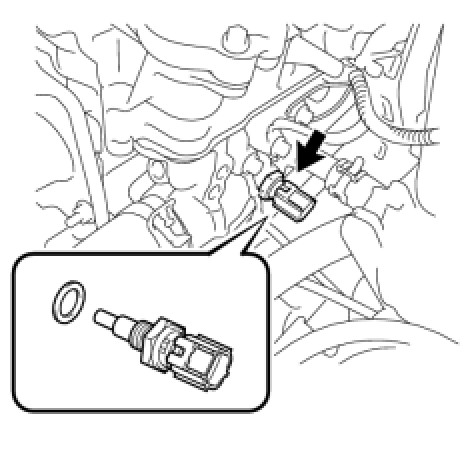

(b) Install the engine coolant temperature sensor.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)





(c) Connect the engine coolant temperature sensor connector.
2. INSTALL AIR CLEANER CASE Installation
3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
4. INSTALL NO. 1 VACUUM SWITCHING VALVE Installation
5. ADD ENGINE COOLANT Service and Repair
6. INSPECT FOR COOLANT LEAK Testing and Inspection
7. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
8. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY Installation
9. INSTALL WINDSHIELD WIPER MOTOR AND LINK
HINT: See the steps from "Install Windshield Wiper Motor and Link Assembly" through "Install front wiper arm and blade assembly LH" Installation.

10. INSTALL NO. 1 ENGINE UNDER COVER
