Integration Relay

1AR-FE ENGINE CONTROL SYSTEM: INTEGRATION RELAY: INSPECTION

INSPECTION

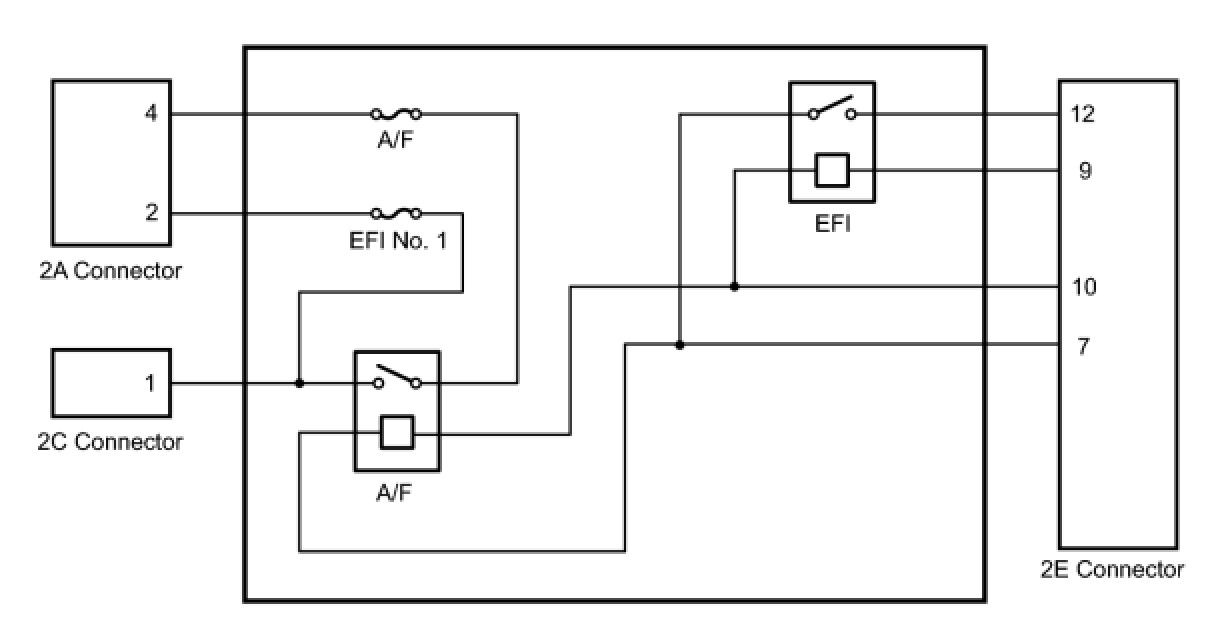

1. INSPECT ENGINE ROOM JUNCTION BLOCK ASSEMBLY





(a) Inspect the EFI No. 1 fuse.
(1) Remove the EFI No. 1 fuse.
(2) Using an ohmmeter, measure the resistance of the fuse.
Standard Resistance:






(b) Inspect the A/F fuse.
(1) Remove the A/F fuse.
(2) Using an ohmmeter, measure the resistance of the fuse.
Standard Resistance:

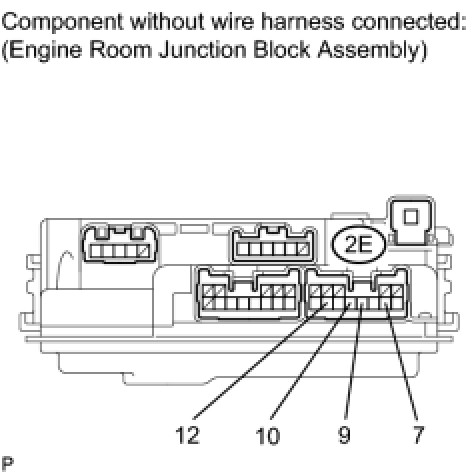

(c) Inspect EFI relay.




(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





NOTE: While using the battery for the inspection, do not bring the positive(+) and negative(-) tester probes too close to each other as a short circuit may occur.

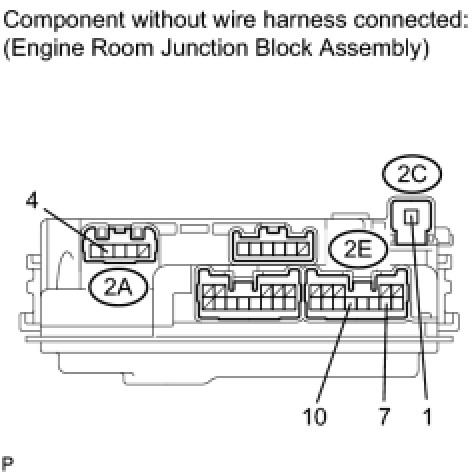

(d) Inspect the A/F relay.




(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





NOTE: While using the battery for the inspection, do not bring the positive(+) and negative(-) tester probes too close to each other as a short circuit may occur.
