1AR-FE IGNITION: IGNITION COIL AND SPARK PLUG: INSTALLATION

INSTALLATION

1. INSTALL SPARK PLUG

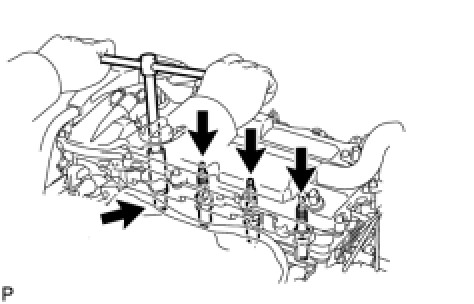

(a) Using a spark plug wrench, install the 4 spark plugs.
Torque: 25 Nm (254 kgf-cm, 18 ft-lbf)
2. INSTALL IGNITION COIL ASSEMBLY

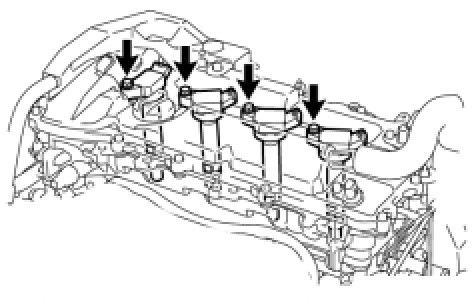

(a) Install the 4 ignition coil assemblies with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the 4 ignition coil assembly connectors.
3. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
