Service Data








SERVICE SPECIFICATIONS: 1AR-FE ENGINE MECHANICAL: SERVICE DATA

SERVICE DATA

ENGINE

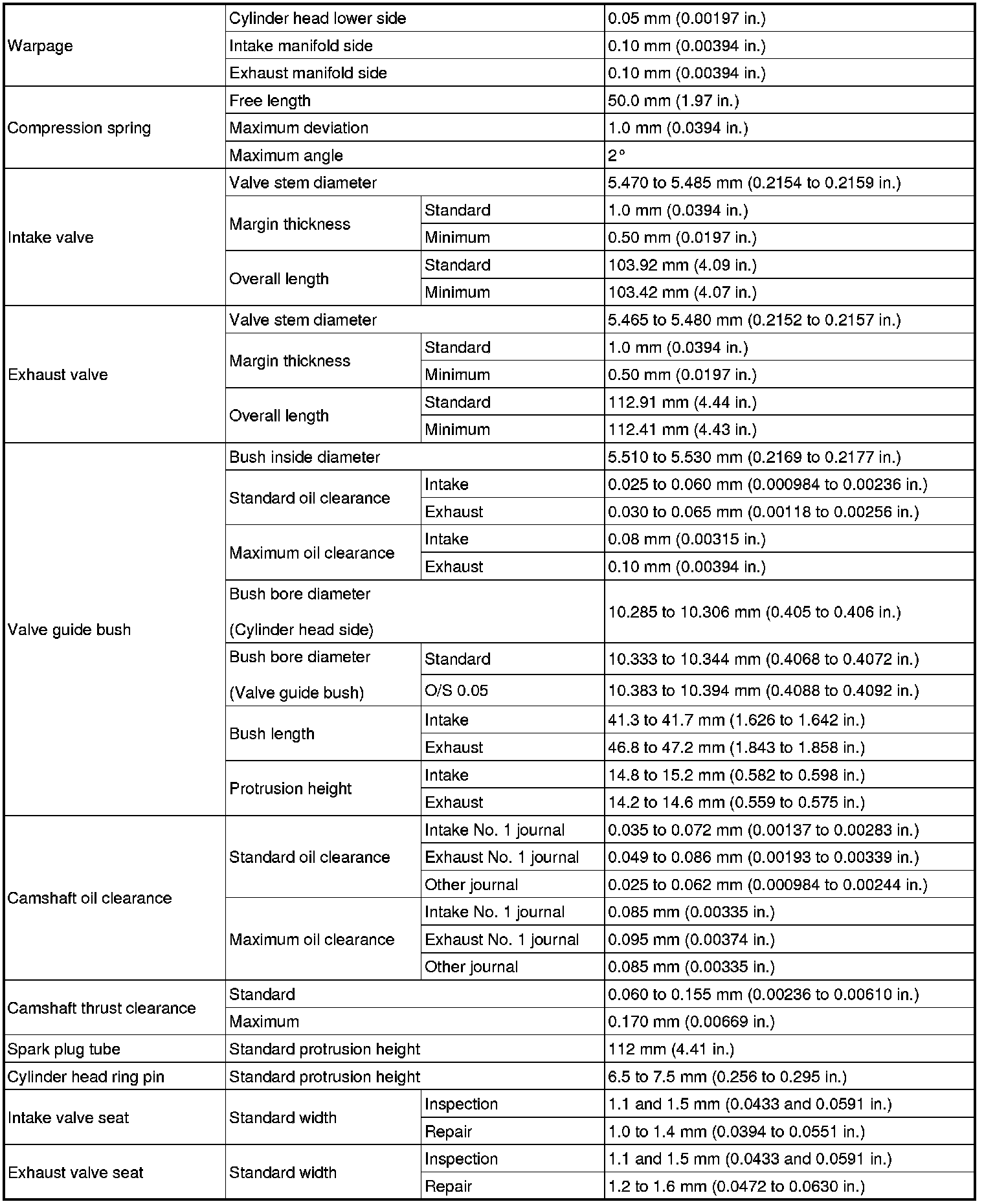

CYLINDER HEAD

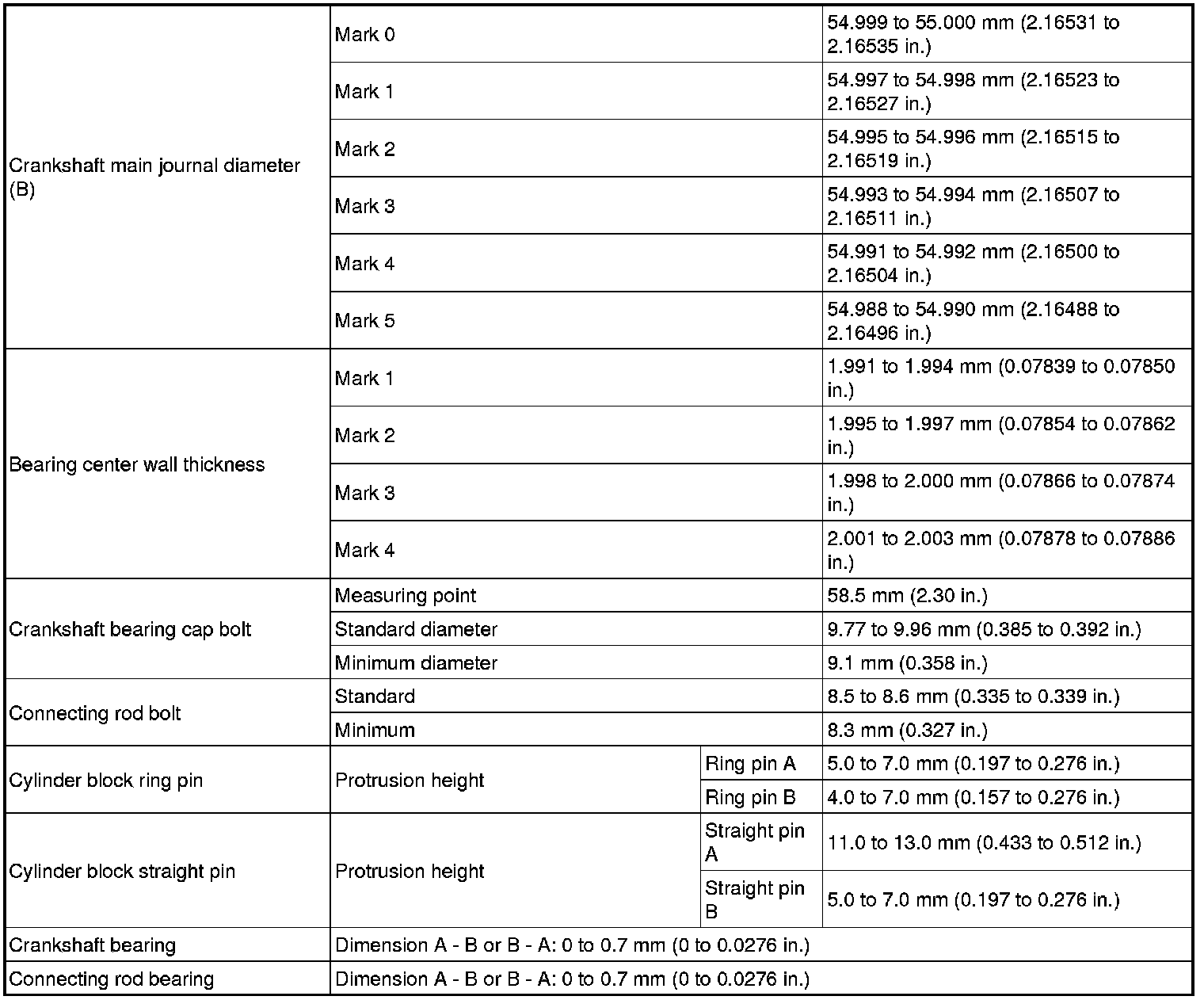

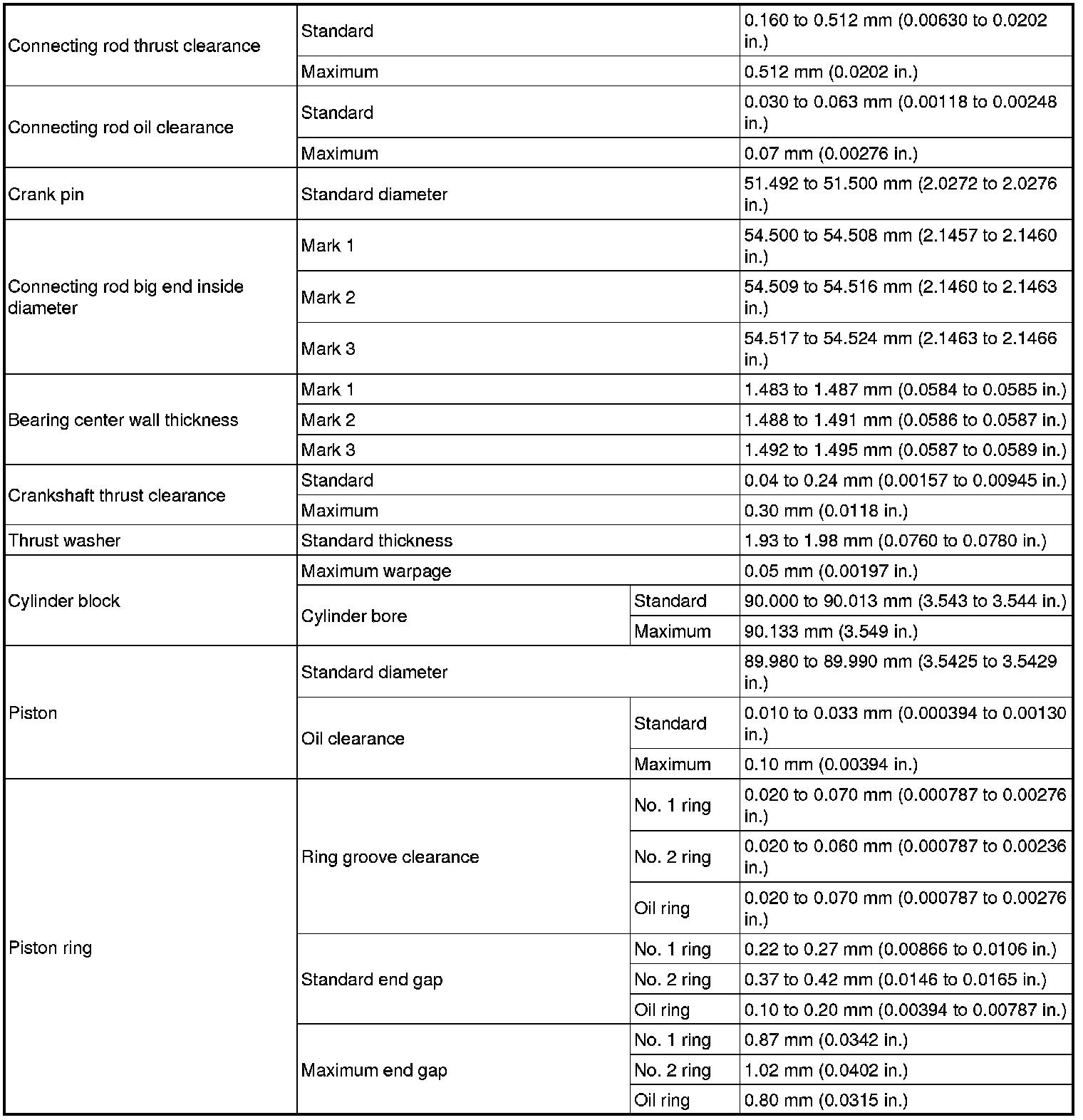

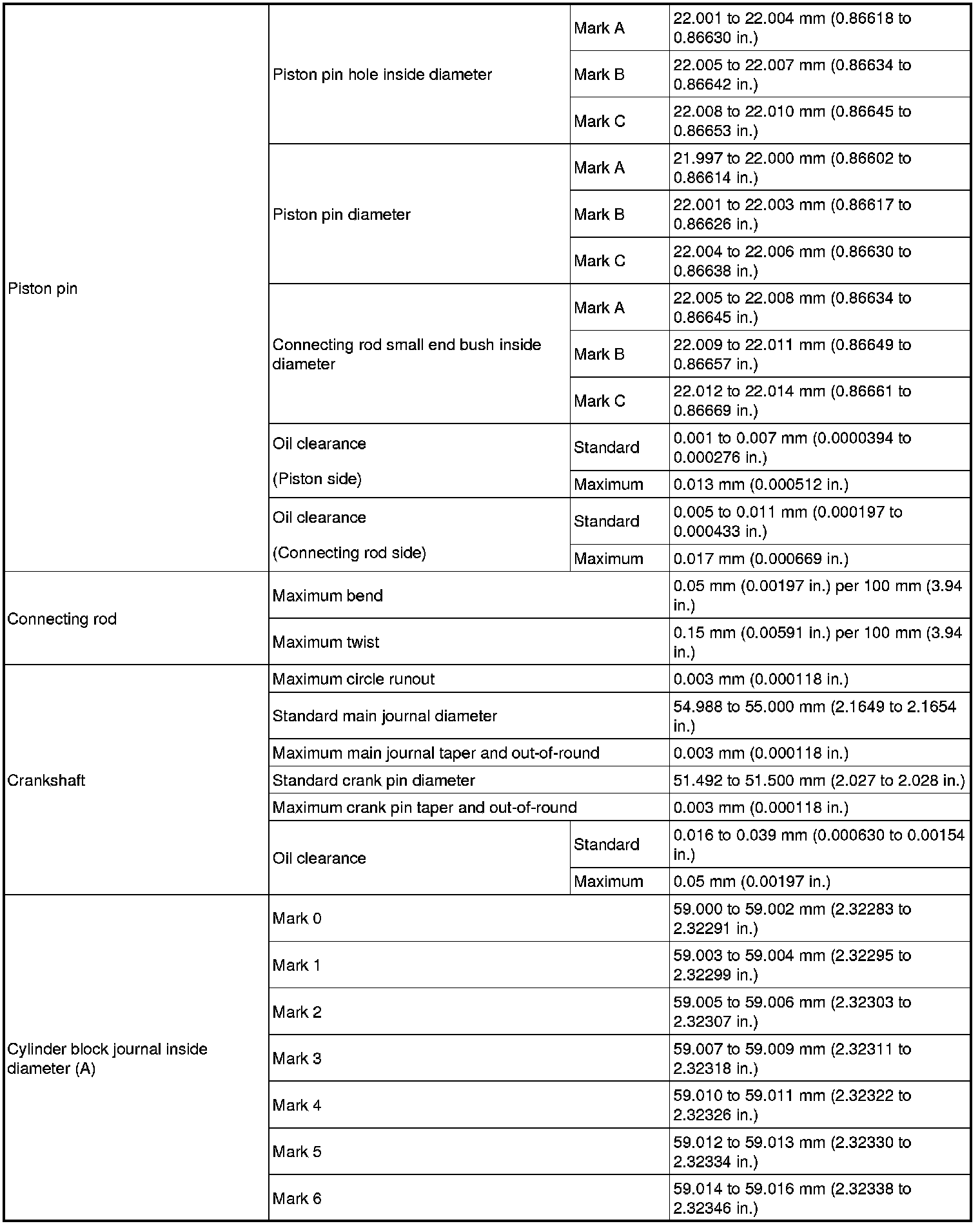

CYLINDER BLOCK

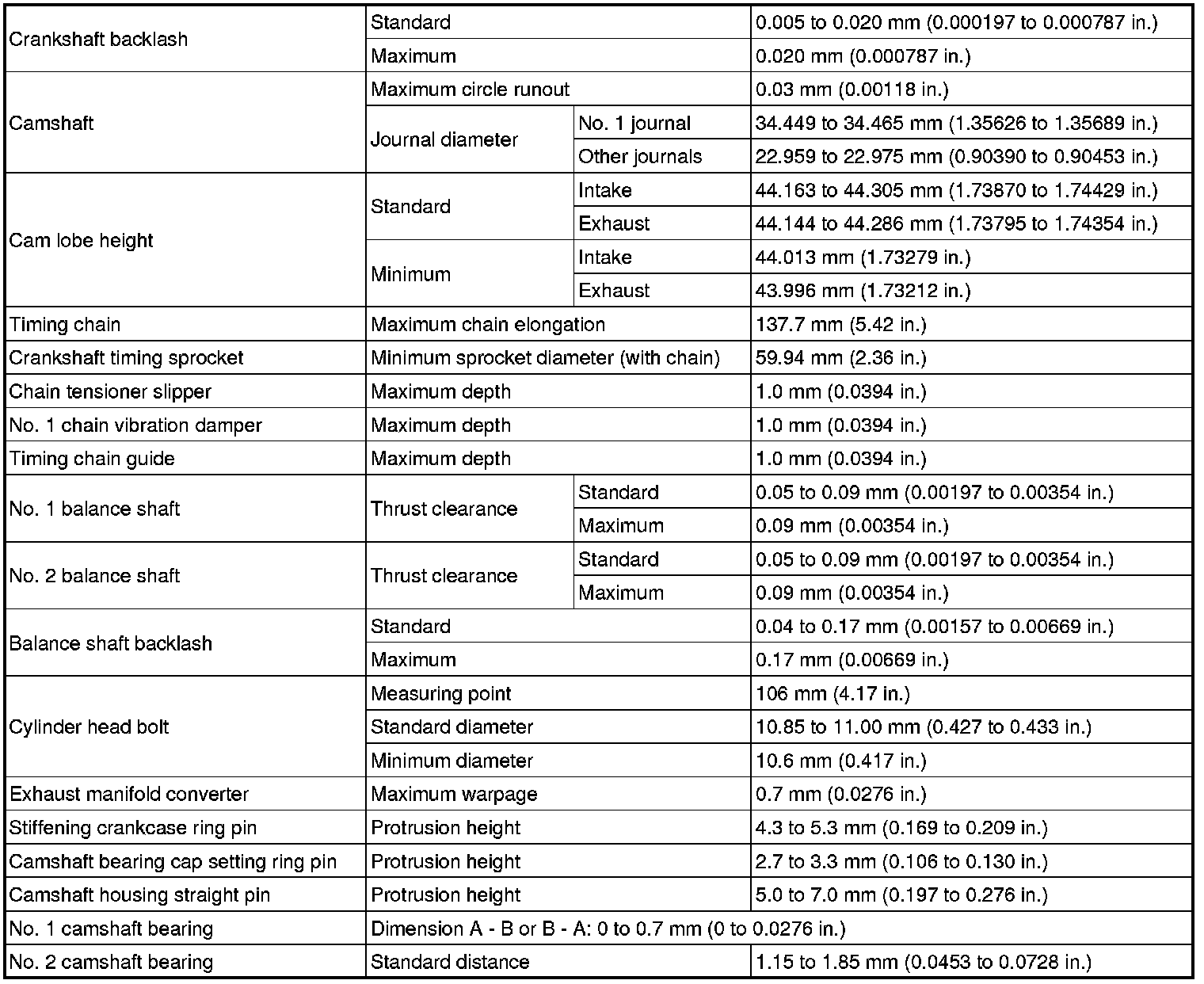

ENGINE UNIT
