Exhaust Manifold

EXHAUST MANIFOLD ASSEMBLY

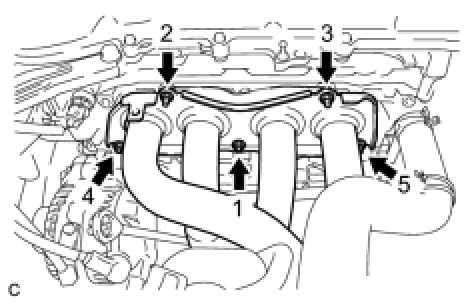

Tighten the 5 nuts in the sequence shown in the illustration.
Torque 35 Nm (357 kgf-cm, 26 ft-lbf)
