Water Pump

WATER PUMP ASSEMBLY

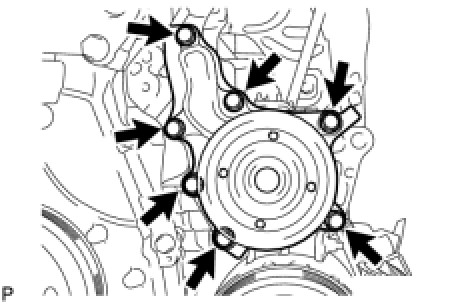

Install a new gasket and the water pump with the 7 bolts.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
