Accelerator Pedal Rod: Installation

INSTALL ACCELERATOR PEDAL ASSEMBLY
NOTE:
- Avoid physical shock to the accelerator pedal assembly.
- Do not disassemble the accelerator pedal assembly.

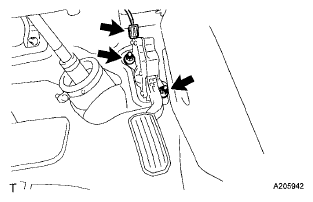

  Fig 1: Locating Nuts And Accelerator Pedal Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the accelerator pedal assembly with the 2 nuts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
2. Connect the accelerator pedal assembly connector.

  Fig 2: Locating Nuts And Accelerator Pedal Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
