Air Fuel Ratio Sensor: Installation

INSTALL AIR FUEL RATIO SENSOR
1. Using SST, install the air fuel ratio sensor to the exhaust manifold.
  SST 09224-00010

  Torque: without SST

  44 N*m (449 kgf*cm, 32 ft.*lbf)

  with SST

  40 N*m (408 kgf*cm, 30 ft.*lbf)
  NOTE:
  - The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
  - The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.) (See REPAIR INSTRUCTION ).
  - This torque value is effective when SST is parallel to the torque wrench.

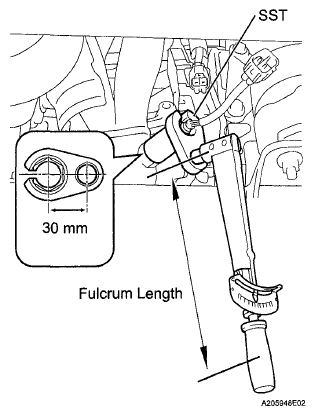

    Fig 1: Installing Air Fuel Ratio Sensor To Exhaust Manifold
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the air fuel ratio sensor connector.
INSPECT FOR EXHAUST GAS LEAK
INSTALL NO. 1 ENGINE UNDER COVER

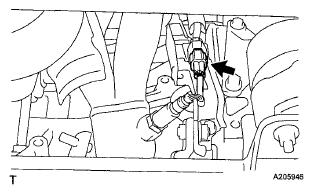

Fig 2: Locating Air Fuel Ratio Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
