Air Intake Control Circuit: Wiring Diagram

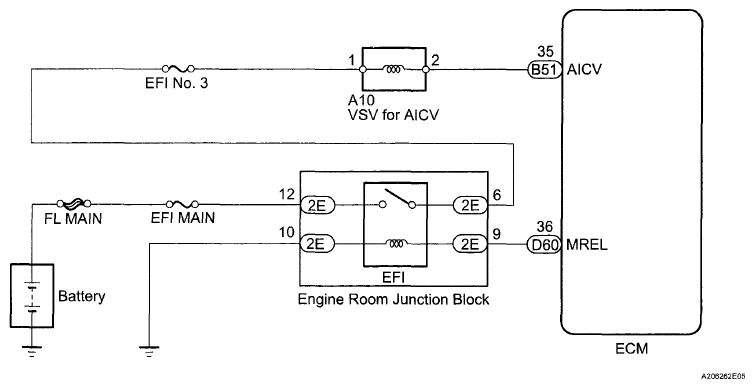

Fig 1: Air Intake Control Circuit - Wiring Diagram
G06111250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
