Camshaft Position Sensor: Components

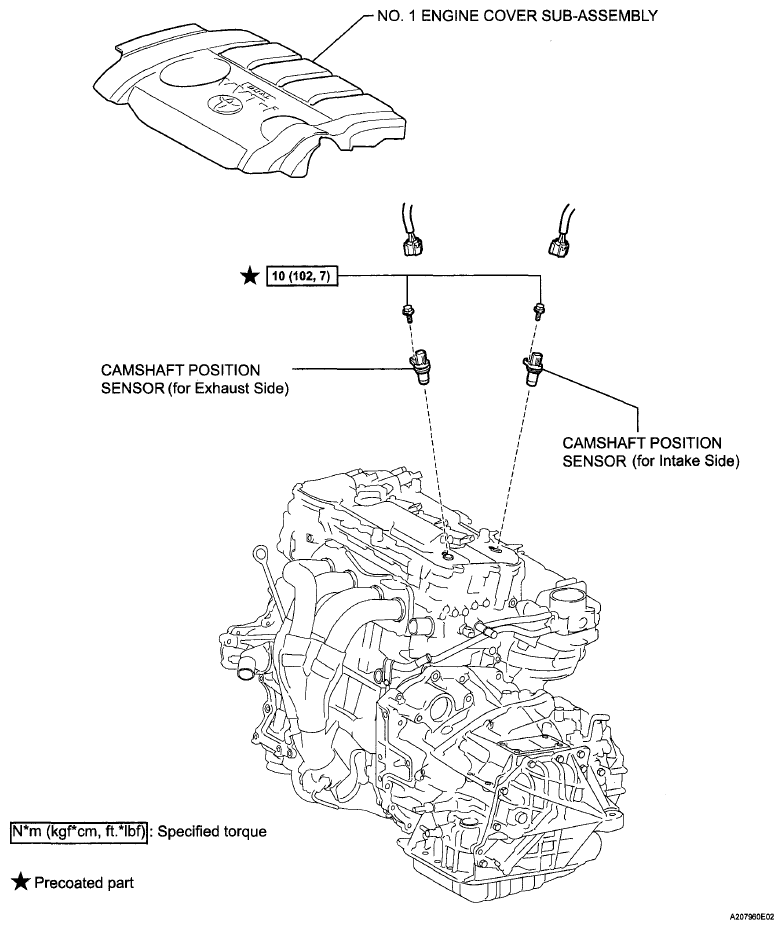

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
G06111300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
