Engine Control System (1AR-FE) - Circuit Testing, Component Inspection, Removal & Installation: ECM: Components

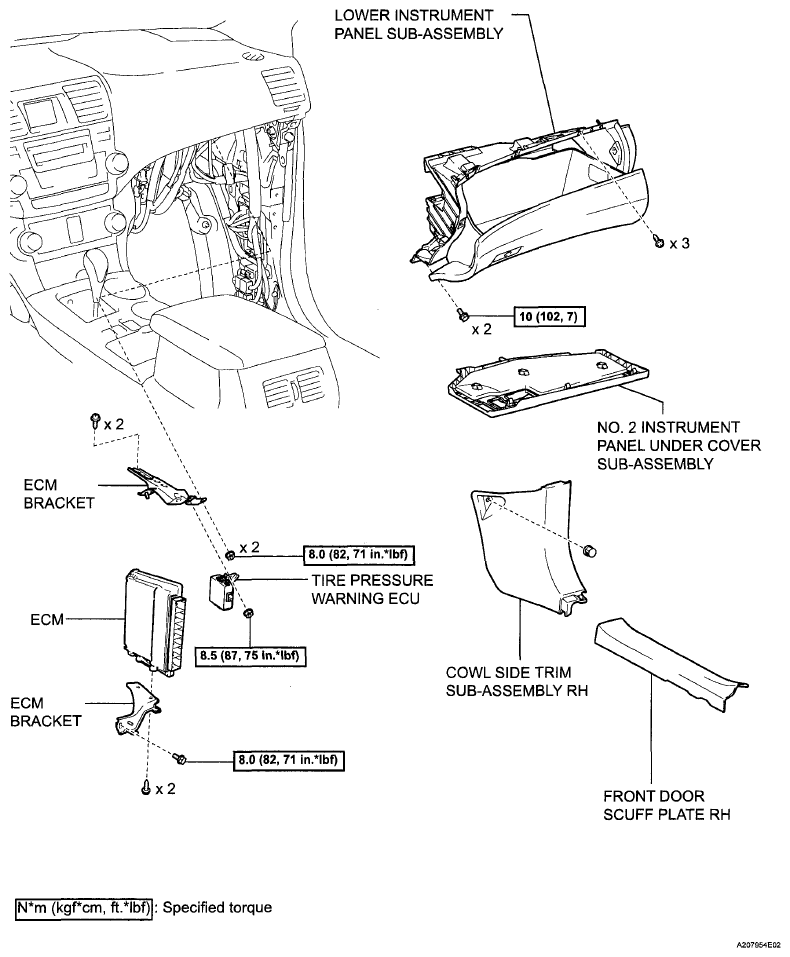

Fig 1: ECM Replacement Components With Torque Specifications
G06111283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
