Engine Coolant Temperature Sensor: Installation

INSTALL ENGINE COOLANT TEMPERATURE SENSOR
1. Install a new gasket to the sensor.
2. Install the engine coolant temperature sensor.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

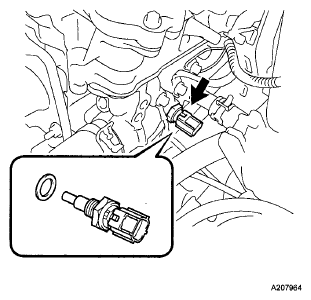

  Fig 1: Locating Gasket And Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the engine coolant temperature sensor connector.
INSTALL AIR CLEANER CASE (See INSTALLATION )
INSTALL AIR CLEANER CAP SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 VACUUM SWITCHING VALVE (See INSPECTION )
ADD ENGINE COOLANT (See COOLANT )

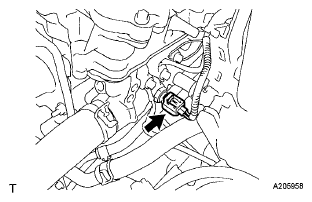

Fig 2: Locating Engine Coolant Temperature Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FOR COOLANT LEAK (See COOLING SYSTEM )
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY (See INSTALLATION )
INSTALL WINDSHIELD WIPER MOTOR AND LINK
HINT:

See the steps from "Install Windshield Wiper Motor and Link Assembly" through "Install front wiper arm and blade assembly LH" (See INSTALLATION ).
INSTALL NO. 1 ENGINE UNDER COVER
