Integration Relay: Components

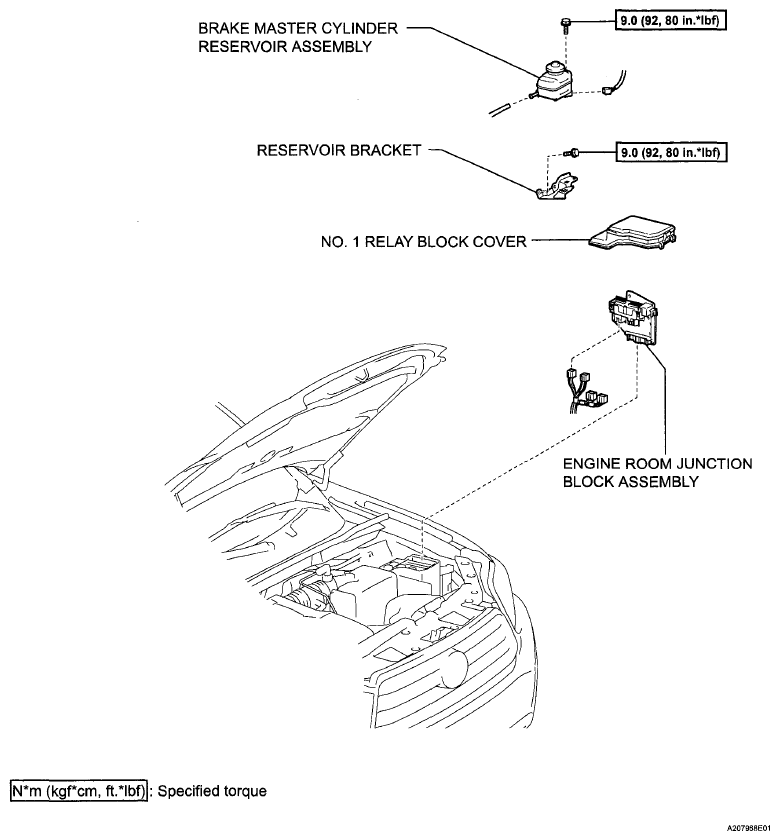

Fig 1: Integration Relay Replacement Components With Torque Specifications
G06111336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
