Integration Relay: Removal

SEPARATE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY (See REASSEMBLY )
REMOVE RESERVOIR BRACKET (See REASSEMBLY )
REMOVE NO. 1 RELAY BLOCK COVER
1. Remove the No. 1 relay block cover.

  Fig 1: Identifying No. 1 Relay Block Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE ROOM JUNCTION BLOCK ASSEMBLY
1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the engine room junction block assembly.

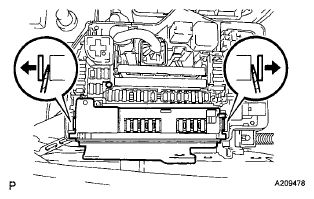

  Fig 2: Disengaging 2 Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 4 connectors.

  Fig 3: Locating Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
