Mass Air Flow Meter: Installation

  1. INSTALL MASS AIR FLOW METER SUB-ASSEMBLY
    1. Install the mass air flow meter with the 2 screws.
      NOTE: Make sure that the O-ring is not cracked or does not jump out of position during installation.
    2. Connect the mass air flow meter connector.

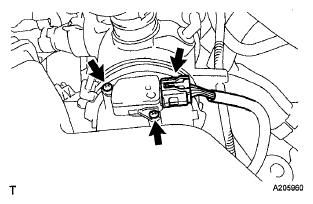

      Fig 1: Locating Screws And Mass Air Flow Meter
      G06111296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
