Camshaft Timing Oil Control Valve Assembly: Removal
- REMOVE ENGINE UNDER COVER ASSEMBLY
(See REMOVAL
)
- REMOVE NO. 1 ENGINE UNDER COVER
(See REMOVAL
)
- DRAIN ENGINE COOLANT
(See COOLANT
)
- REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
(See REMOVAL
)
- REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
(See REMOVAL
)
- REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
(See REMOVAL
)
- REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
(See REMOVAL
)
- REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
(See REMOVAL
)
- REMOVE V-BANK COVER SUB-ASSEMBLY
(See REMOVAL
)
- REMOVE AIR CLEANER CAP SUB-ASSEMBLY
(See REMOVAL
)
- DISCONNECT ENGINE ROOM MAIN WIRE
(See REMOVAL
)
- REMOVE THROTTLE BODY BRACKET
(See REMOVAL
)
- REMOVE NO. 1 SURGE TANK STAY
(See REMOVAL
)
- REMOVE INTAKE AIR SURGE TANK ASSEMBLY
(See REMOVAL
)

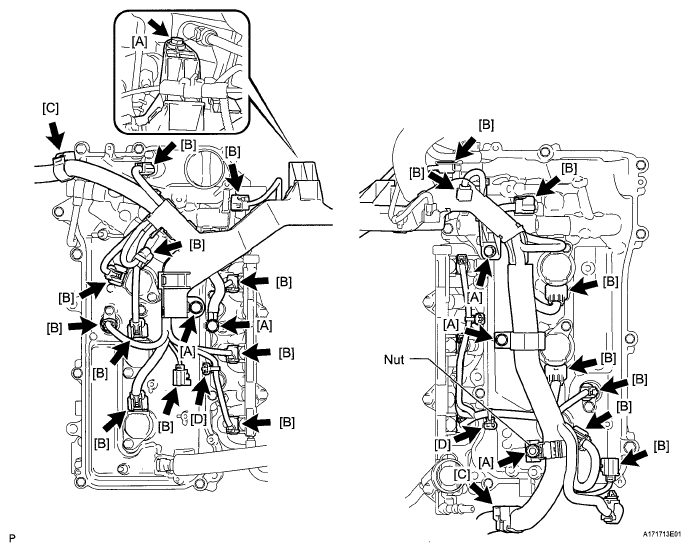

- SEPARATE HARNESS PROTECTOR
- Remove the 5 bolts and nut [A].
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the 19 connectors [B].
- Disconnect the 2 clamps [C].
- Disconnect the 2 studs [D].
- REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
- Exhaust side:
- Remove the bolt and camshaft timing oil control valve assembly.
- Remove the O-ring from the camshaft timing oil control valve assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Intake side:
- Remove the bolt and camshaft timing oil control valve assembly.
- Remove the O-ring from the camshaft timing oil control valve assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
- Exhaust side:
- Remove the bolt and camshaft timing oil control valve assembly.
- Remove the O-ring from the camshaft timing oil control valve assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Intake side:
- Remove the bolt and camshaft timing oil control valve assembly.
- Remove the O-ring from the camshaft timing oil control valve assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
