Fuel Injector Circuit: Wiring Diagram

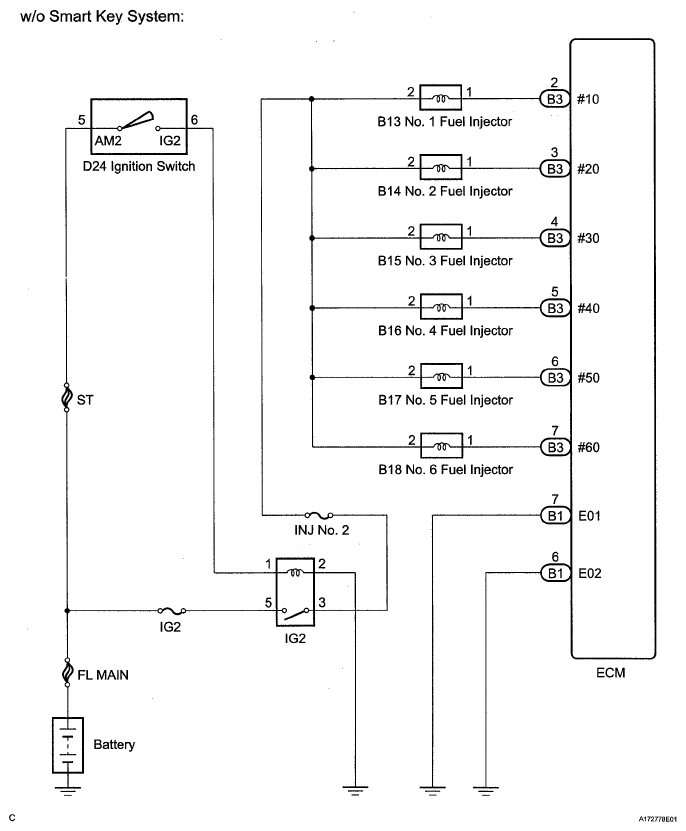

Fig 1: Fuel Injector - Wiring Diagram (1 Of 2)
G05413918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

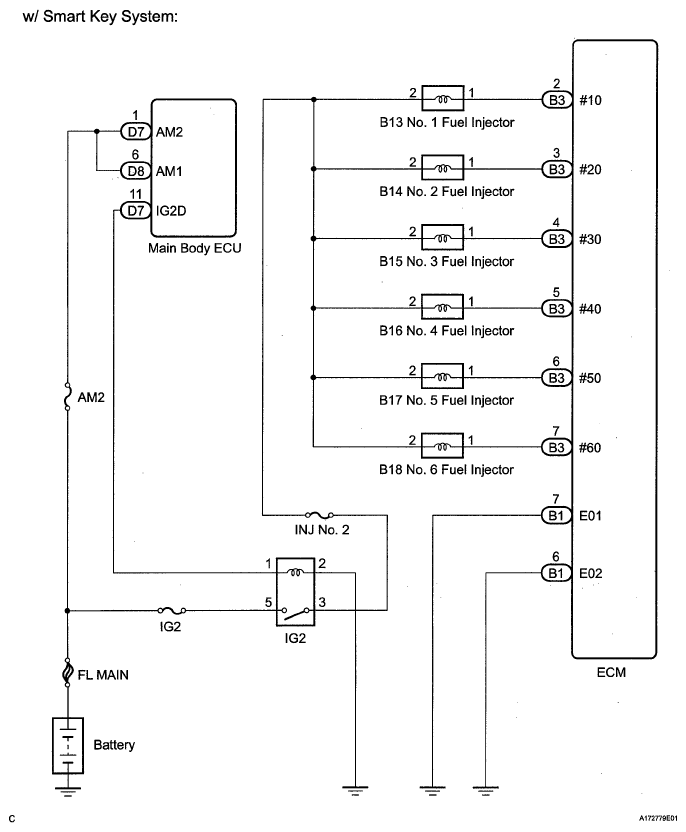

Fig 2: Fuel Injector - Wiring Diagram (2 Of 2)
G05413919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
