MIL Circuit: Wiring Diagram

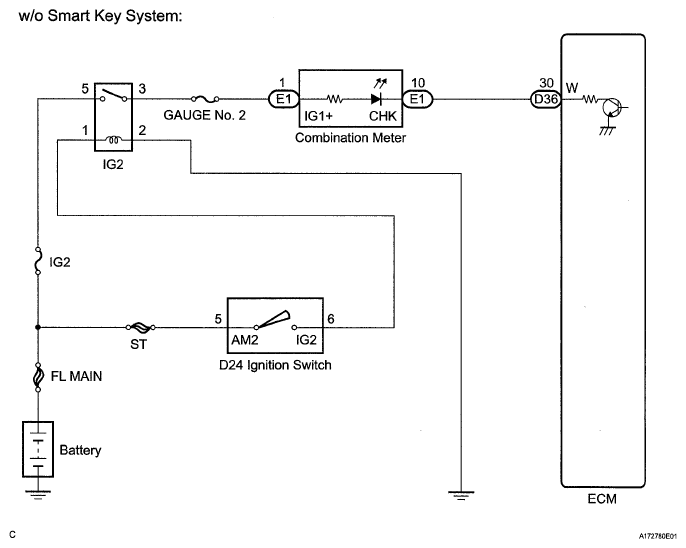

Fig 1: MIL - Wiring Diagram (1 Of 2)
G05413959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

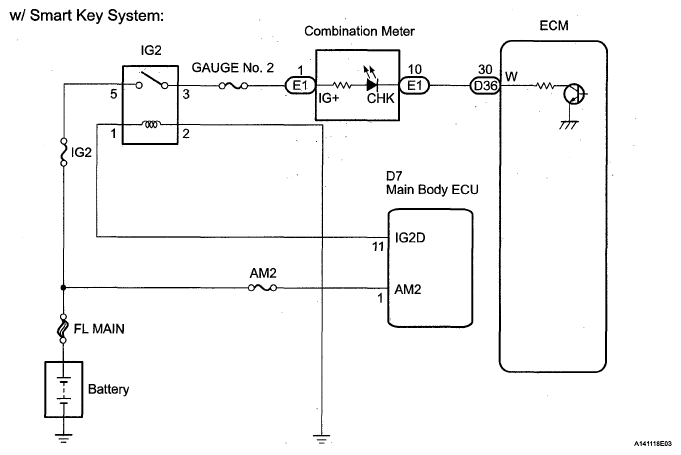

Fig 2: MIL - Wiring Diagram (2 Of 2)
G05413960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
