Cranking Holding Function Circuit: Description

The system detects the ignition switch's starting signal (STSW) and then supplies current to the starter until the ECM judges that the engine has started successfully. The purpose is to reduce the holding time of the ignition key.

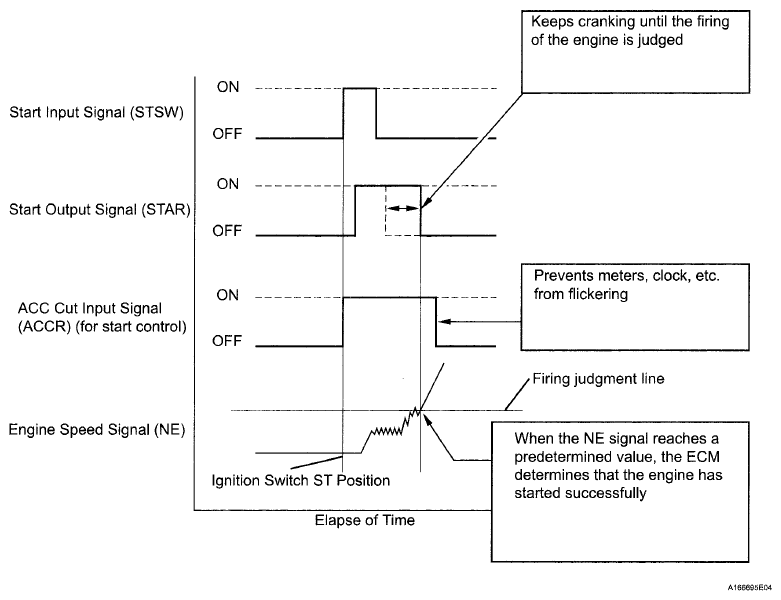

Fig 1: Identifying Start Input And Engine Speed Signals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
