Fuel Pump Control Circuit: Wiring Diagram

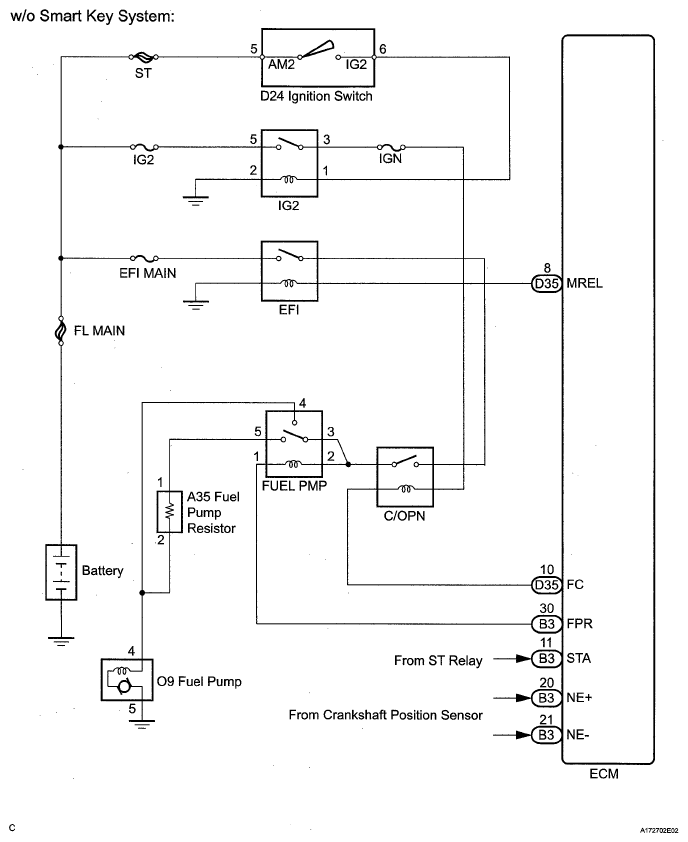

Fig 1: Fuel Pump Control - Wiring Diagram (1 Of 2)
G05413693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

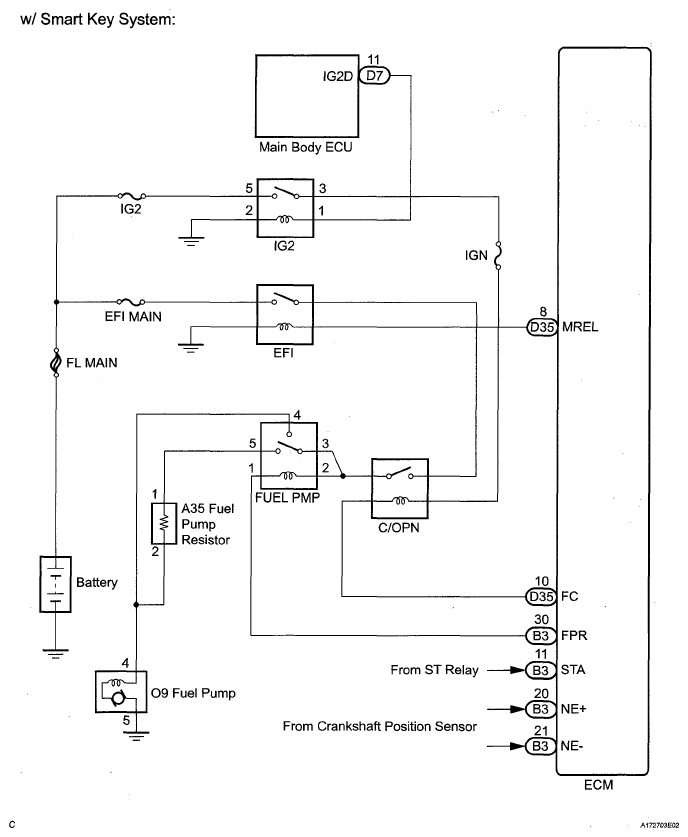

Fig 2: Fuel Pump Control - Wiring Diagram (2 Of 2)
G05413694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
