Integration Relay: Installation

INSTALL ENGINE ROOM JUNCTION BLOCK ASSEMBLY
1. Connect the 4 connectors.
2. Attach the engine room junction block assembly.

  Fig 1: Locating Engine Room Junction Block Assembly Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 RELAY BLOCK COVER
1. Install the No. 1 relay block cover.
INSTALL RESERVOIR BRACKET (See INSTALLATION )
INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY (See INSTALLATION )

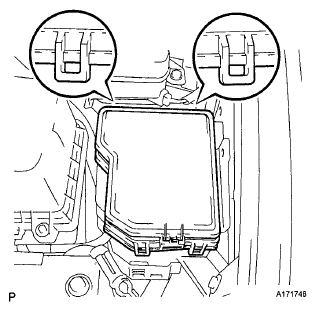

Fig 2: Identifying No. 1 Relay Block Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
