Inspection Procedure
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system. - CHECK FOR OPEN IN CAN BUS WIRE (SKID CONTROL ECU BRANCH WIRE)
- Disconnect the A24 master cylinder solenoid (skid control ECU) connector.
- Measure the resistance according to the value (s) in the table below.
Standard Resistance
STANDARD RESISTANCE SPECIFICATIONTester Connection Switch Condition Specified Condition A24-11 (CANH) - A24-25 (CANL) Engine switch off 54 to 69 Ω NG: REPAIR OR REPLACE SKID CONTROL ECU BRANCH WIRE OR CONNECTOR (CANH, CANL)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: Go to Next Step
- CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - BATTERY AND BODY GROUND)
- Connect the cable to the negative (-) battery terminal.
- Disconnect the A24 and A25 master cylinder solenoid (skid control ECU) connectors.
- Measure the resistance according to the value (s) in the table below.
Standard Resistance

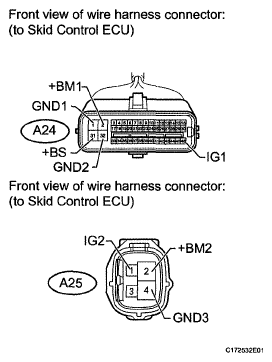

STANDARD RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition A24-1 (GND1) - Body ground Always Below 1 Ω A24-32 (GND2) - Body ground A25-4 (GND3) - Body ground - Measure the voltage according to the value (s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Voltage
STANDARD VOLTAGE SPECIFICATIONTester Connection Switch Condition Specified Condition A24-2 (+BM1) - Body ground Always 11 to 14 V A24-31 (+BS) - Body ground A25-2 (+BM2) - Body ground A24-46 (IG1) - Body ground Engine switch on (IG) 11 to 14 V A25-1 (IG2) - Body ground NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE MASTER CYLINDER SOLENOID (SKID CONTROL ECU) (See DISASSEMBLY )
