DTC U0122 Lost Communication with Vehicle Dynamics Control Module; DTC U0129 Lost Communication with Brake System Control Module: Wiring Diagram

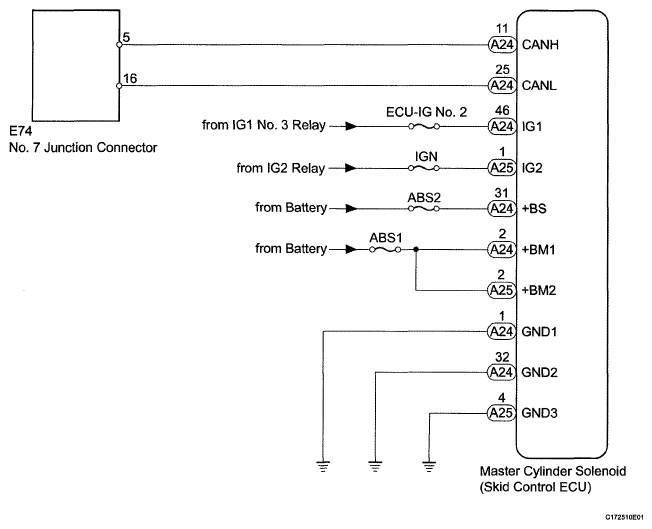

Fig 1: Lost Communication With Vehicle Dynamics Control Module - Wiring Diagram
G05639436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
