DTC U0123 Lost Communication with Yaw Rate Sensor Module; DTC U0124 Lost Communication with Lateral Acceleration Sensor Module: Wiring Diagram

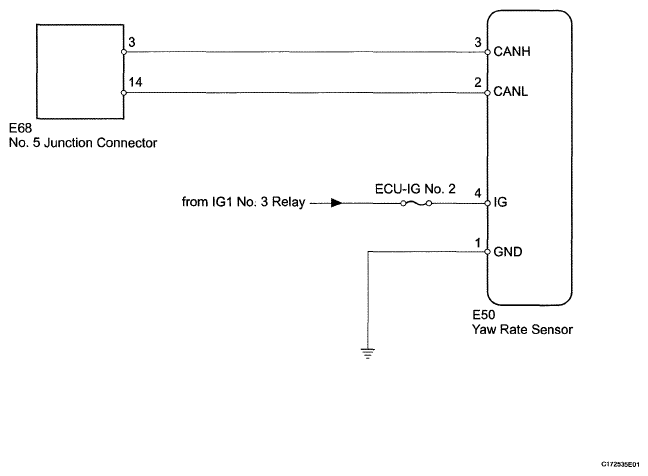

Fig 1: Lost Communication With Yaw Rate Sensor Module - Wiring Diagram
G05639439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
