Front Passenger Side Power Window Auto Up/Down Function does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

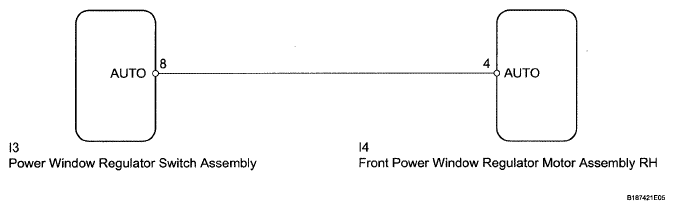

Fig 1: Power Window Regulator Switch & Front Power Window Regulator Motor - Wiring Diagram
G05636332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
