Front Seat Assembly: Components

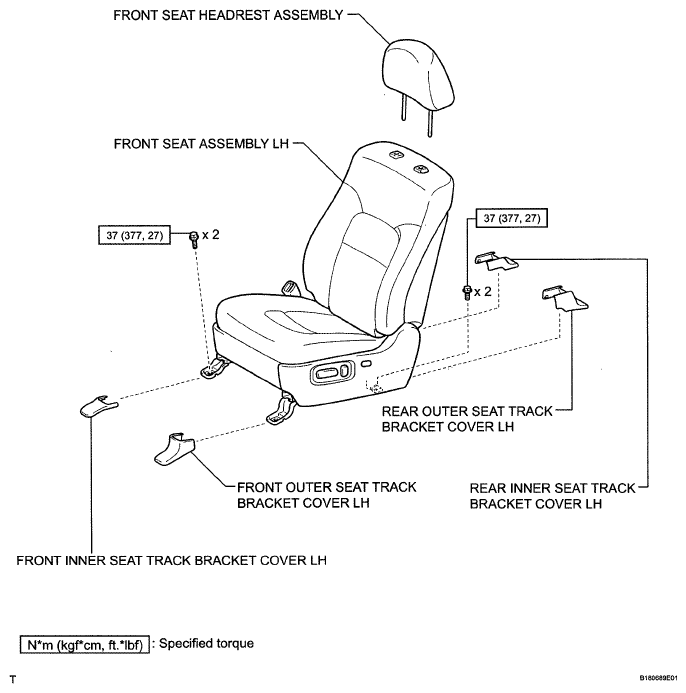

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (1 Of 5)
G05631608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

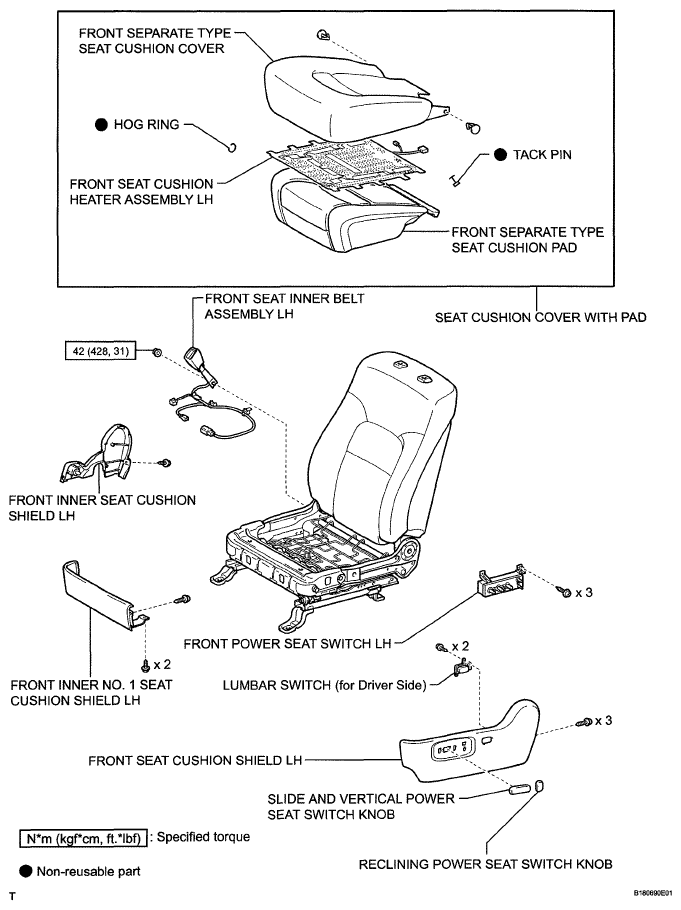

Fig 2: Identifying Front Seat Assembly Replacement Components With Torque Specifications (2 Of 5)
G05631609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

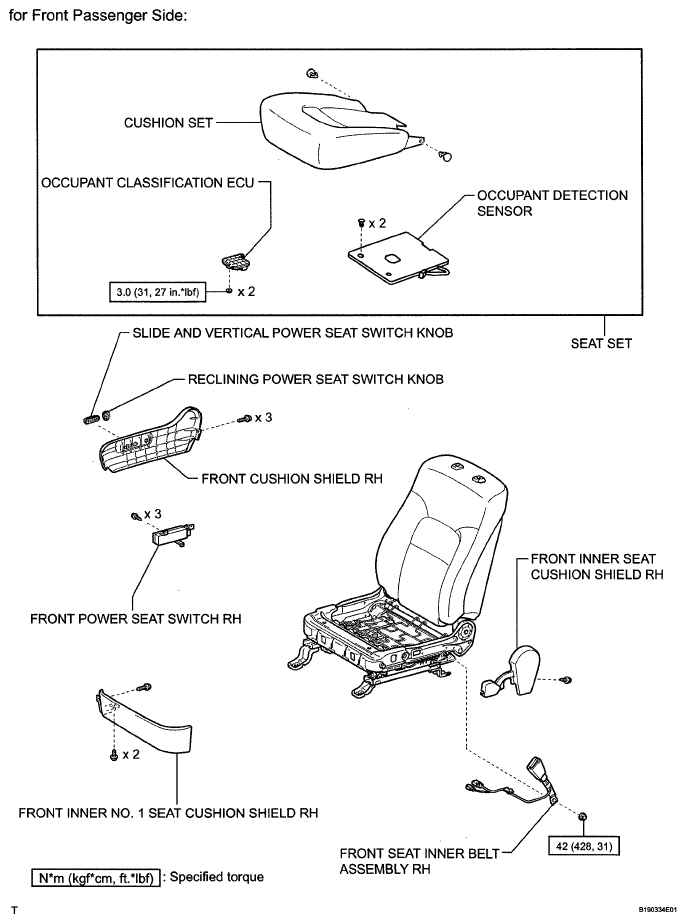

Fig 3: Identifying Front Seat Assembly Replacement Components With Torque Specifications (3 Of 5)
G05631610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Front Seat Assembly Replacement Components With Torque Specifications (4 Of 5)
G05631611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

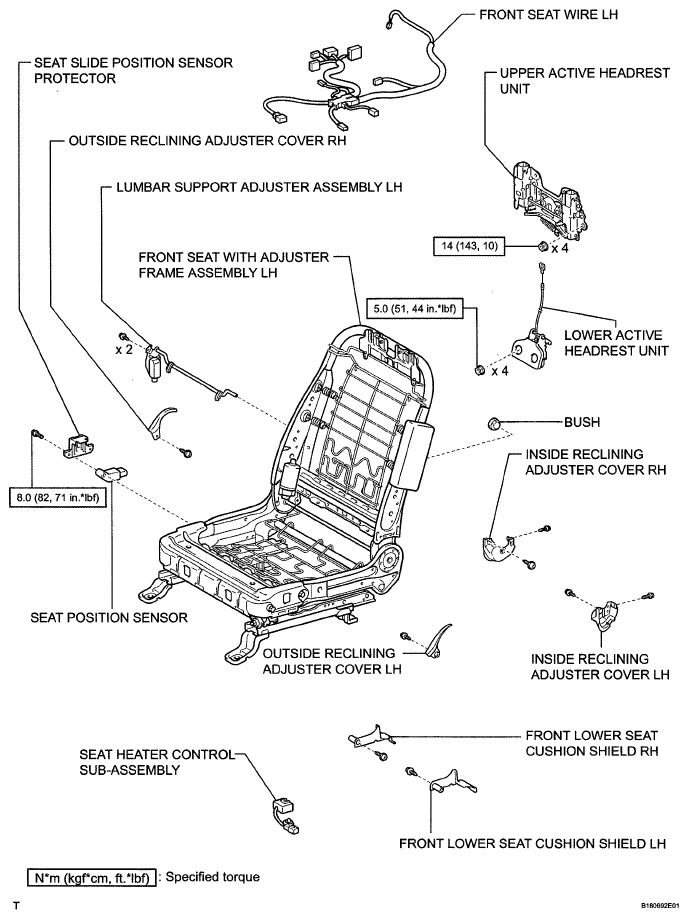

Fig 5: Identifying Front Seat Assembly Replacement Components With Torque Specifications (5 Of 5)
G05631612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
