DTC C1202/58 Brake Fluid Level Low / Open Circuit in Brake Fluid Level Warning Switch Circuit: Wiring Diagram

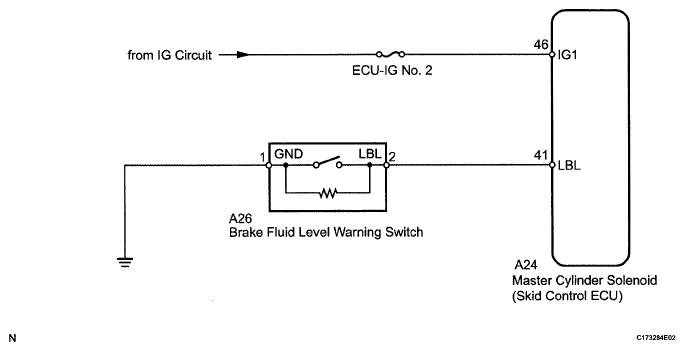

Fig 1: Brake Fluid Level Warning Switch - Wiring Diagram
G05629871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
