Clock (w/o Multi-Display)
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Clock (w/o Multi-Display): Notes

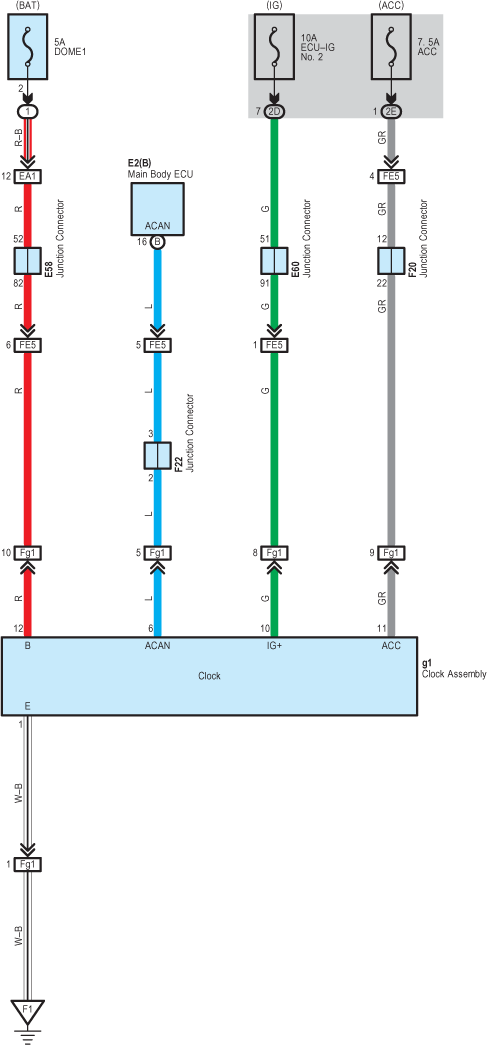

Fig 1: Clock (W/O Multi-Display) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
