Towing Socket: Components

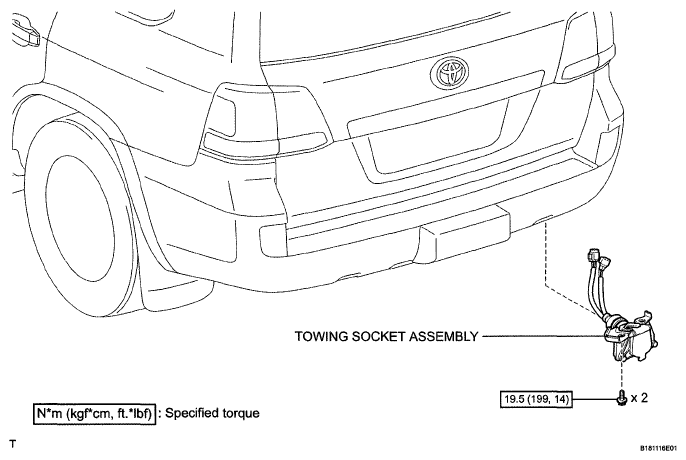

Fig 1: Towing Socket Replacement Components With Torque Specifications
G05637229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
