Engine Cooling System: Radiator: Components

Fig 1: Identifying Radiator Replacement Components With Torque Specifications (1 Of 3)
G05638113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

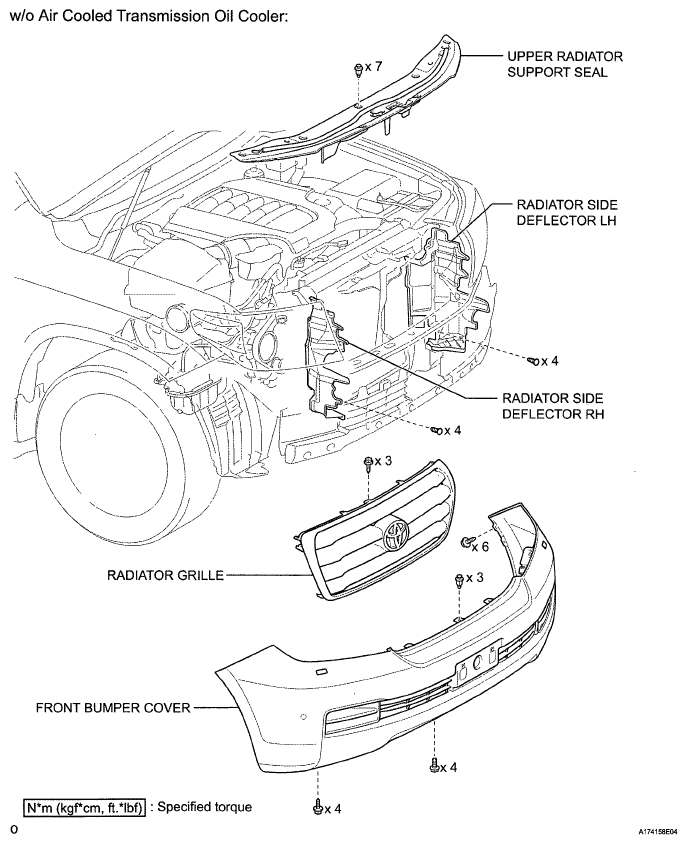

Fig 2: Identifying Radiator Replacement Components With Torque Specifications (2 Of 3)
G05638114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

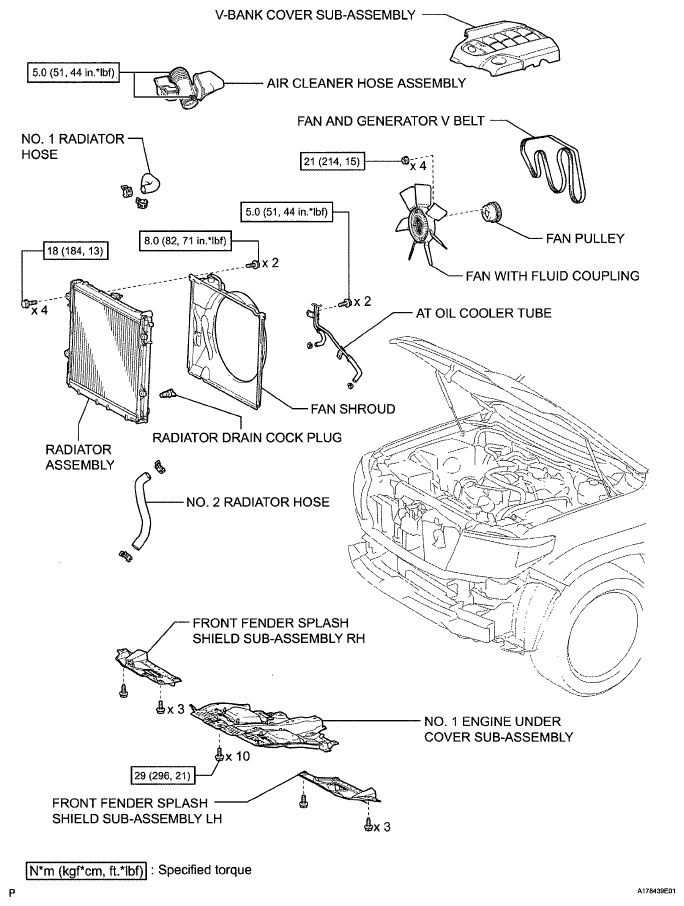

Fig 3: Identifying Radiator Replacement Components With Torque Specifications (3 Of 3)
G05638115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
