On-Vehicle Inspection

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:
- After the engine switch is turned off, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the engine switch off, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
REMOVE LOWER STEERING COLUMN COVER
1. Remove the 3 screws.
  HINT:

  Turn the steering wheel to the right and left as necessary to remove the 2 screws.

  Fig 1: Turning Steering Wheel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Detach the 2 claws to remove the lower steering column cover.

  Fig 2: Identifying Claws On Lower Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UPPER STEERING COLUMN COVER
1. Detach the 4 clips.
2. Detach the claw to remove the upper steering column cover.
REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
1. Remove the driver side knee airbag assembly (See KNEE AIRBAG ASSEMBLY (DRIVER SIDE) ).

  Fig 3: Identifying Upper Steering Column Cover With Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT TILT MOTOR

Inspect the tilt motor.

Apply battery voltage to the tilt motor connector, and check the steering wheel tilt operation.

MEASUREMENT CONDITION AND SPECIFIED CONDITION

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 10 (TIM+) Battery negative (-) → Terminal 1 (TIM-)	Steering wheel tilts up
Battery negative (-) → Terminal 10 (TIM+) Battery positive (+) → Terminal 1 (TIM-)	Steering wheel tilts down

If the result is not as specified, replace the steering column assembly.

INSPECT TELESCOPIC MOTOR

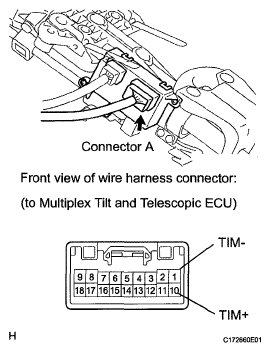

Fig 4: Locating Multiplex Tilt And Telescopic ECU Connector A

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Inspect the telescopic motor.

Apply battery voltage to the telescopic motor connector, and check the steering column operation.

MEASUREMENT CONDITION AND SPECIFIED CONDITION

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 2 (TEM+) Battery negative (-) → Terminal 6 (TEM-)	Steering column contracts
Battery negative (-) → Terminal 2 (TEM+) Battery positive (+) → Terminal 6 (TEM-)	Steering column extends

If the result is not as specified, replace the steering column assembly.

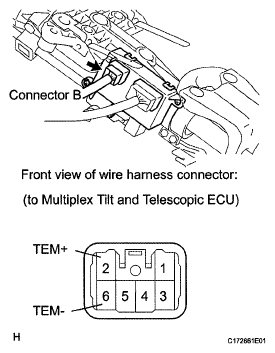

Fig 5: Locating Multiplex Tilt And Telescopic ECU Connector B

INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
1. Install the driver side knee airbag assembly (See INSTALLATION ).
INSTALL UPPER STEERING COLUMN COVER
1. Attach the claw.
2. Attach the 4 clips to install the upper steering column cover onto the instrument panel cluster finish panel.

  Fig 6: Identifying Upper Steering Column Cover With Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER STEERING COLUMN COVER
1. Attach the 2 claws to install the lower steering column cover.

  Fig 7: Identifying Claws On Lower Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 3 screws.
  Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

  HINT:

  Turn the steering wheel to the right and left as necessary to install the 2 screws.

  Fig 8: Turning Steering Wheel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
