Tilt And Telescopic Manual Switch: Components

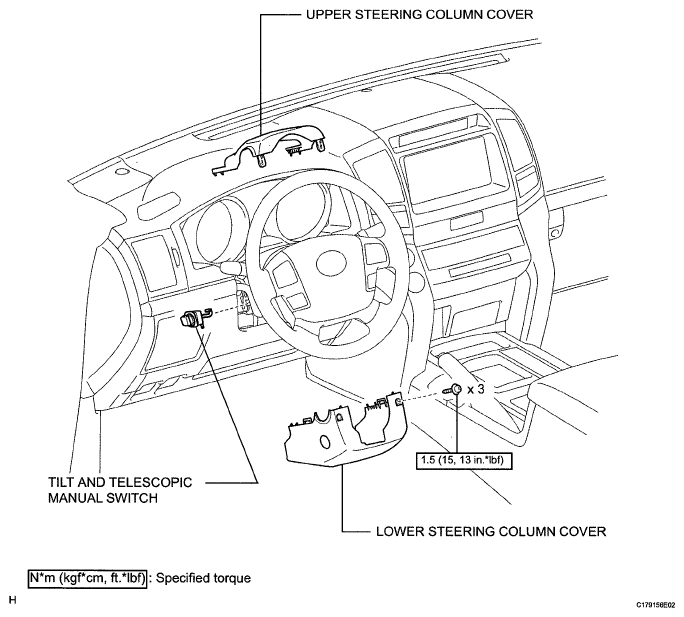

Fig 1: Tilt And Telescopic Manual Switch Replacement Components With Torque Specifications
G05630126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
