Stabilizer Control Valve: Components

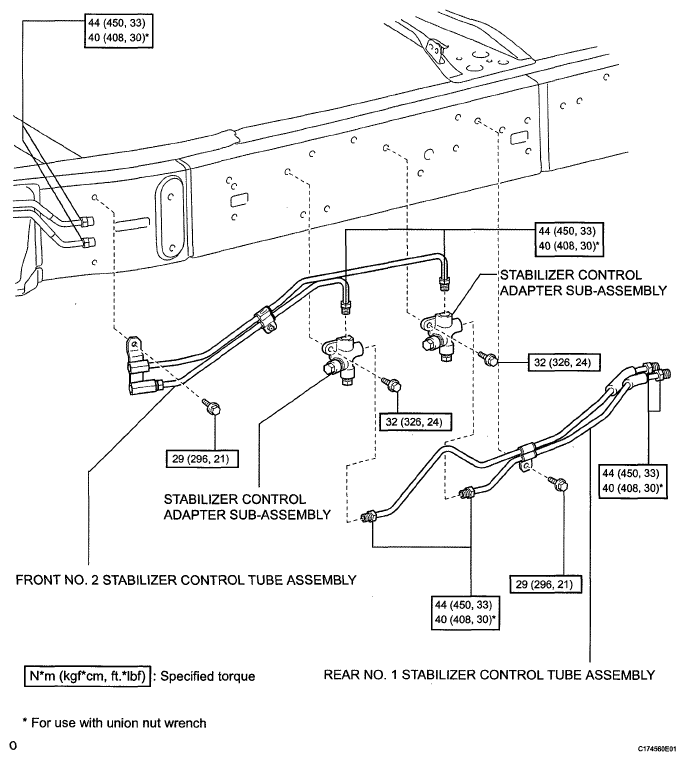

Fig 1: Identifying Stabilizer Control Valve Replacement Components With Torque Specification (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

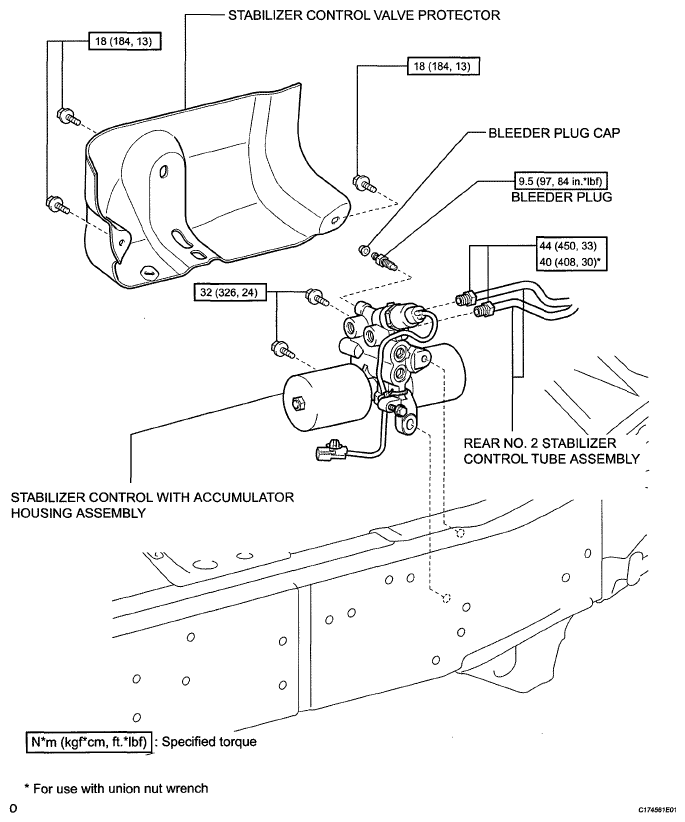

Fig 2: Identifying Stabilizer Control Valve Replacement Components With Torque Specification (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

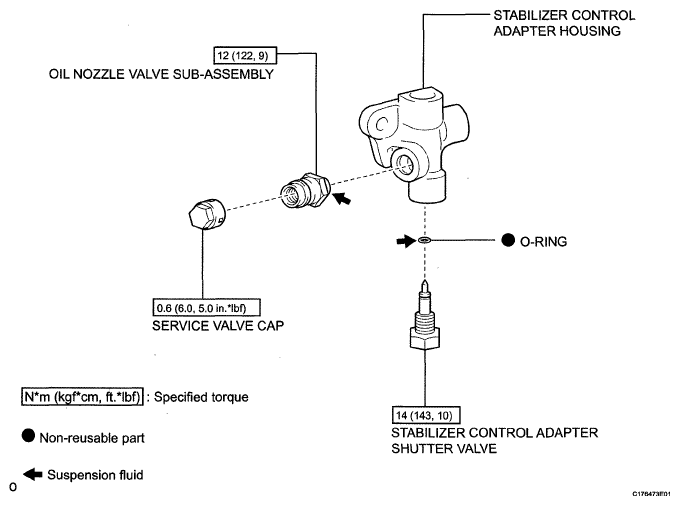

Fig 3: Identifying Stabilizer Control Valve Replacement Components With Torque Specification (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Exploded View Of Stabilizer Control Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
