Installation

THEFT DETERRENT / KEYLESS ENTRY: TRANSPONDER KEY ECU: INSTALLATION

INSTALLATION

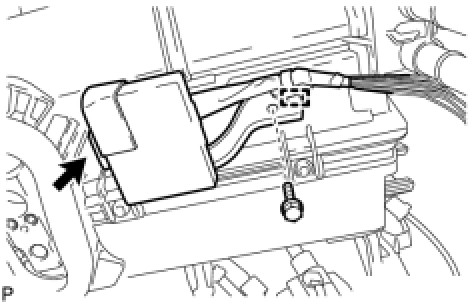

1. INSTALL TRANSPONDER KEY ECU





(a) Install the transponder key ECU with the bolt.
(b) Engage the clamp.
(c) Connect the connector.
2. INSTALL AIR CONDITIONING UNIT
(a) Install the air conditioning unit Installation.
3. REGISTER ECU COMMUNICATION ID
NOTE: After replacing the transponder key ECU, perform initialization Engine Immobiliser System.

4. REGISTER KEY
NOTE: After replacing the transponder key ECU, perform initialization Engine Immobiliser System.
