Map Disc Cannot be Inserted

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: Map Disc cannot be Inserted

Map Disc cannot be Inserted

INSPECTION PROCEDURE

PROCEDURE

1. CHECK NAVIGATION RECEIVER ASSEMBLY
(a) Check if a disc is inserted into the MAP disc slot.
(1) Check if "DISC IN" comes on.
OK:
"DISC IN" comes on.
NG -- EJECT DISC
OK -- Continue to next step.

2. CHECK MAP DISC

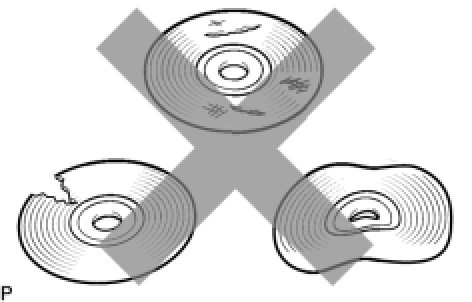

(a) Check that the map disc is not deformed or cracked.
OK:
No deformations or cracks on the map disc
NG -- REPLACE MAP DISC
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
