Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH

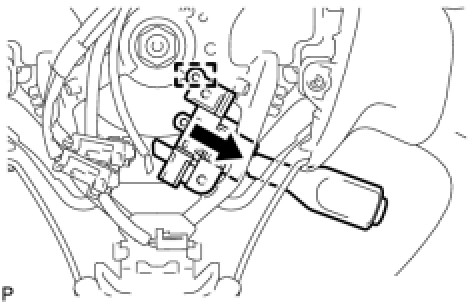

(a) Engage the pin and install the cruise control main switch as shown in the illustration.
(b) Connect the connector.

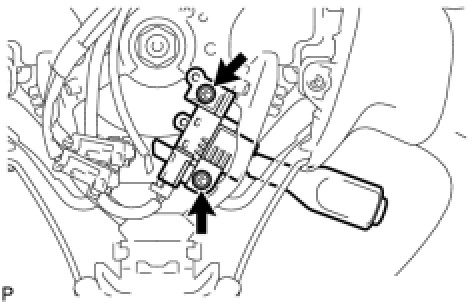

(c) Install the 2 screws.
2. INSTALL STEERING PAD Installation
3. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation
4. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSPECT STEERING PAD Installation
7. INSPECT SRS WARNING LIGHT
(a) Inspect the SRS warning light Diagnosis System.
