Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system Service Precautions.

2. REMOVE LOWER NO. 3 STEERING WHEEL COVER Removal
3. REMOVE LOWER NO. 2 STEERING WHEEL COVER Removal
4. REMOVE STEERING PAD Removal
5. REMOVE CRUISE CONTROL MAIN SWITCH





(a) Remove the 2 screws.
(b) Disconnect the connector.

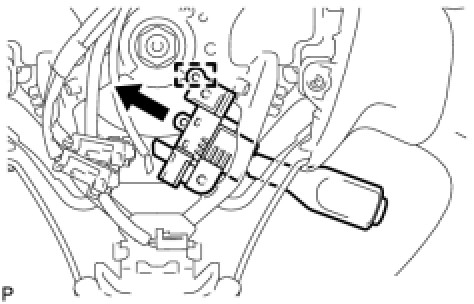

(c) Disengage the pin and remove the cruise control main switch as shown in the illustration.
