Audio System [Built-In Type Amplifier], Navigation System

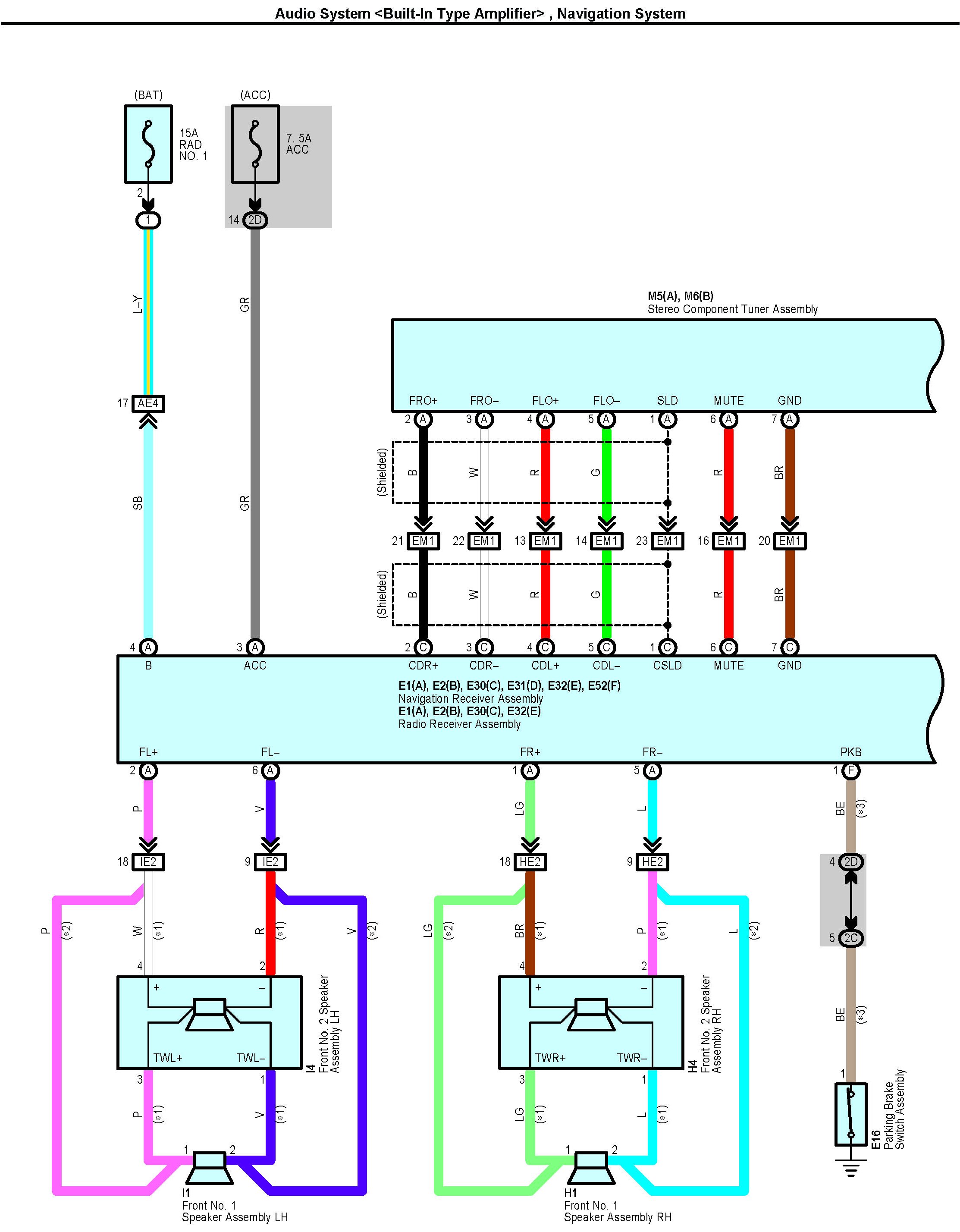

Audio System [Built-In Type Amplifier], Navigation System Part 1:

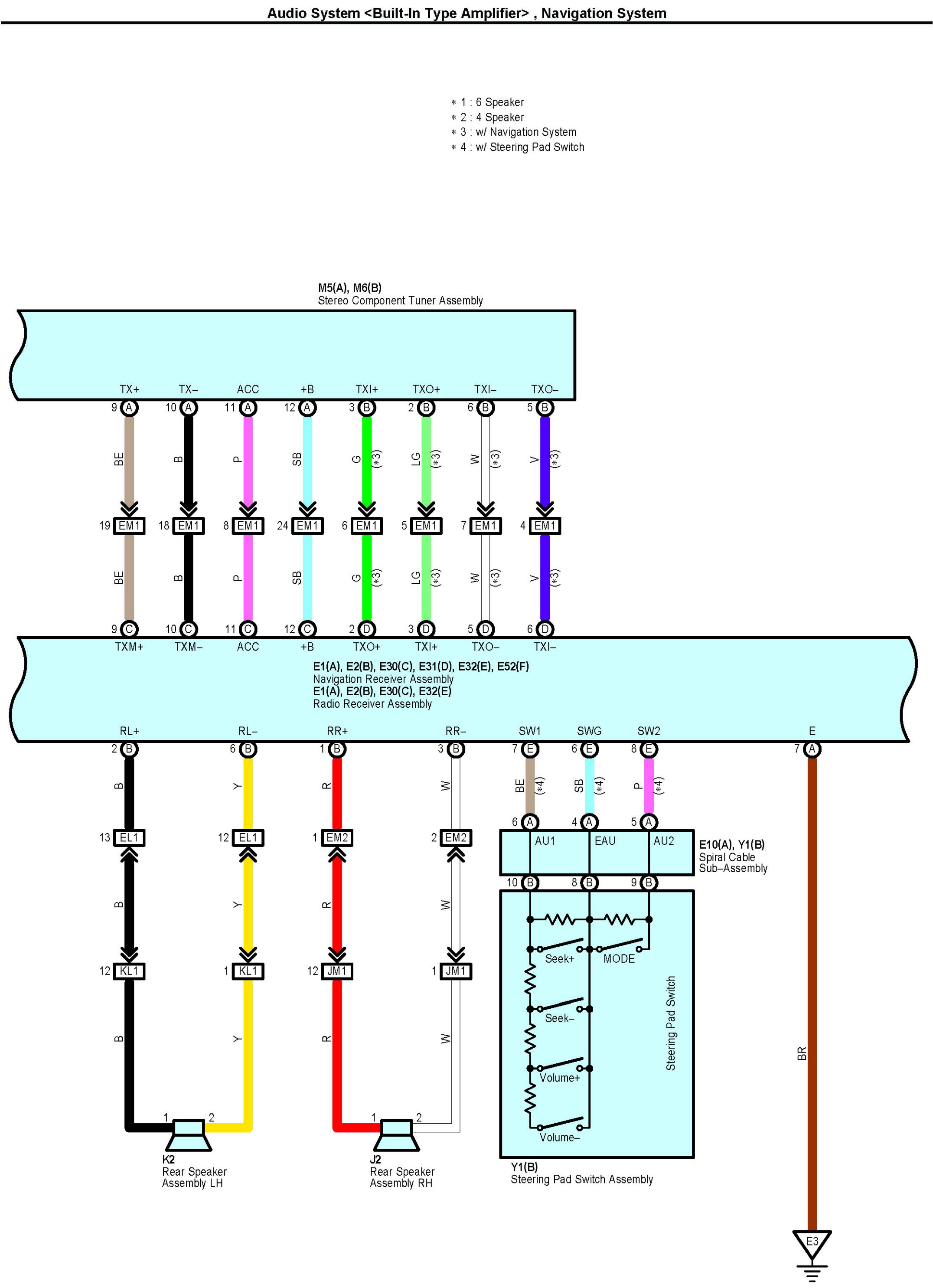

Audio System [Built-In Type Amplifier], Navigation System Part 2:

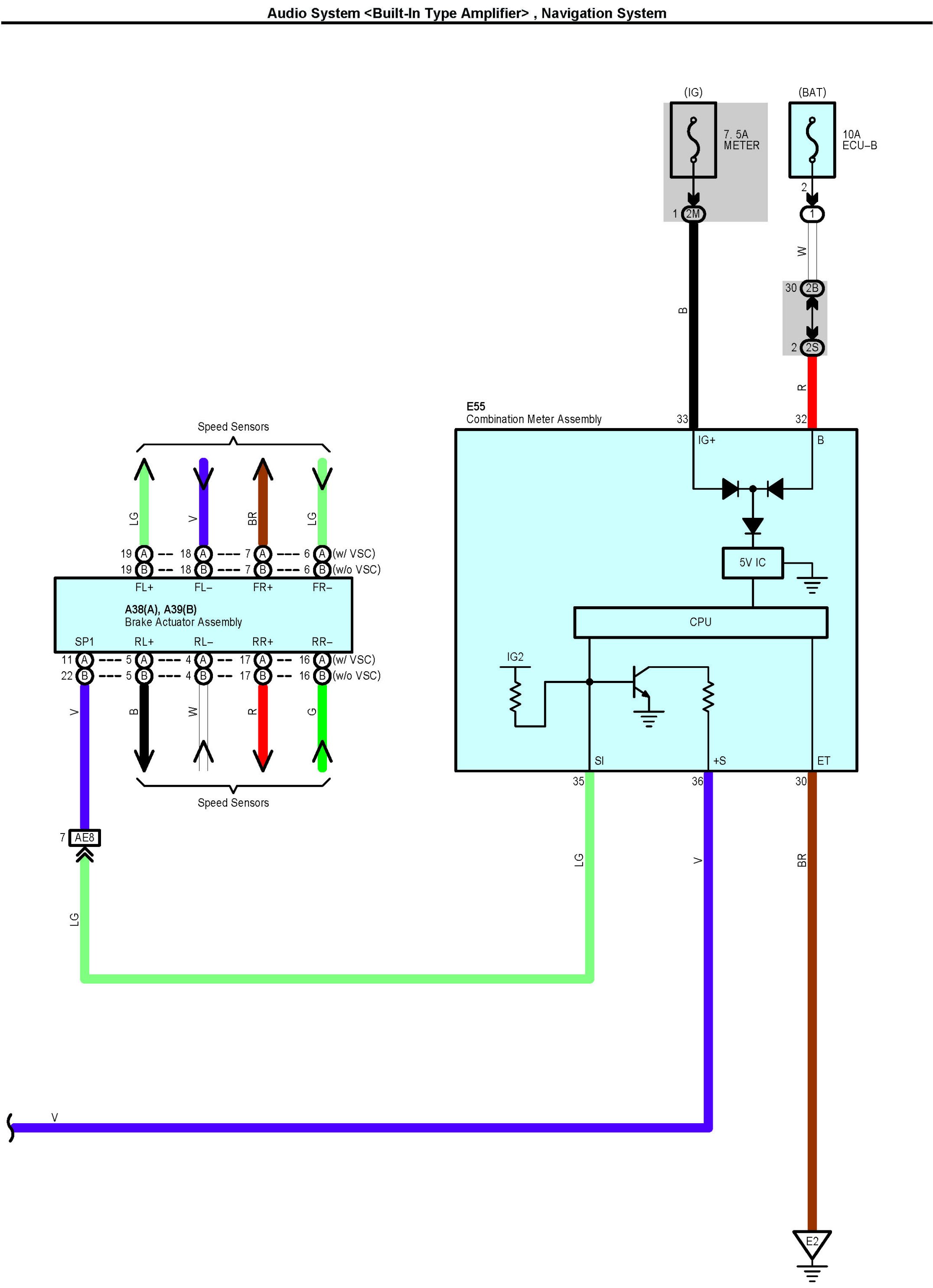

Audio System [Built-In Type Amplifier], Navigation System Part 3:

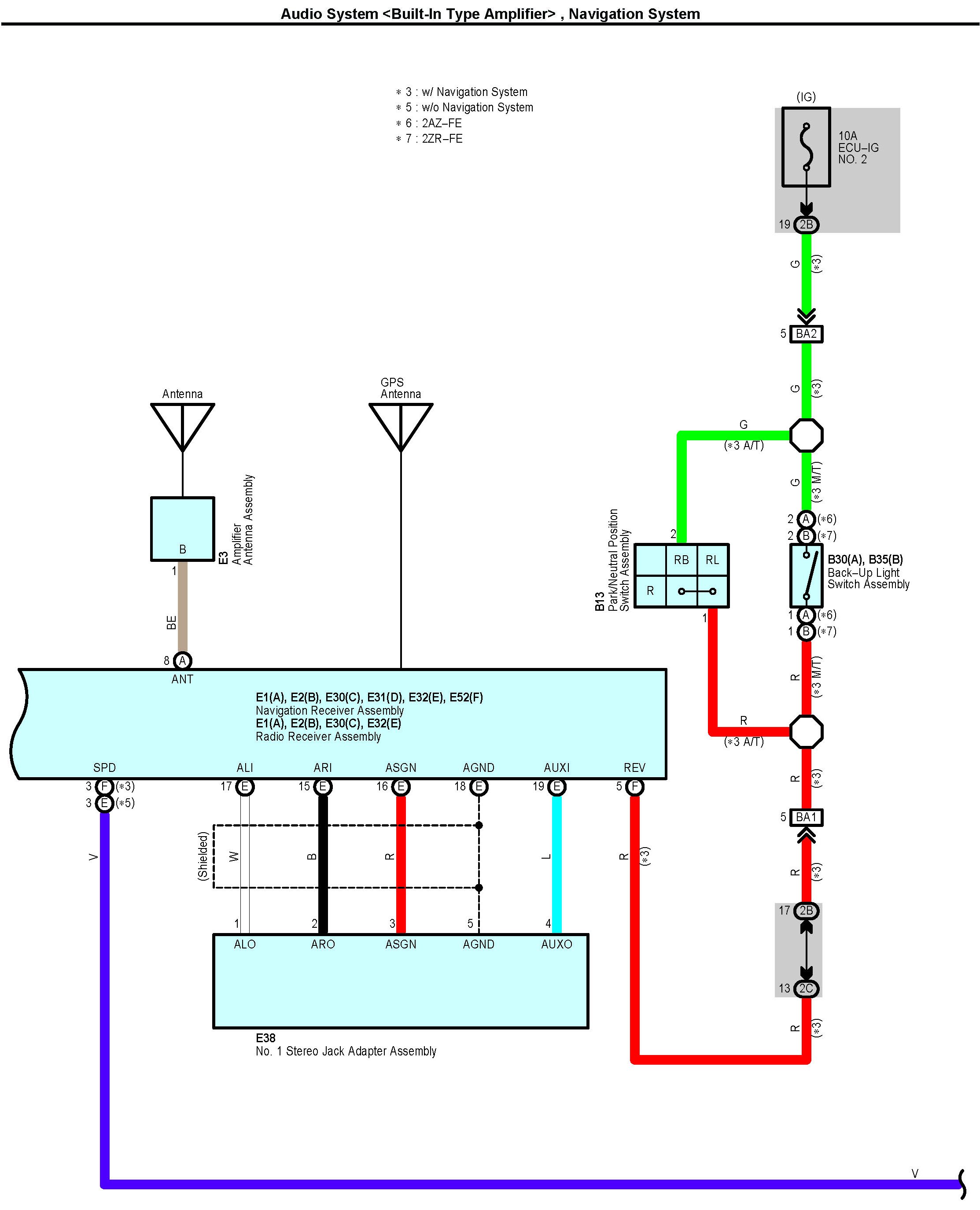

Audio System [Built-In Type Amplifier], Navigation System Part 4:

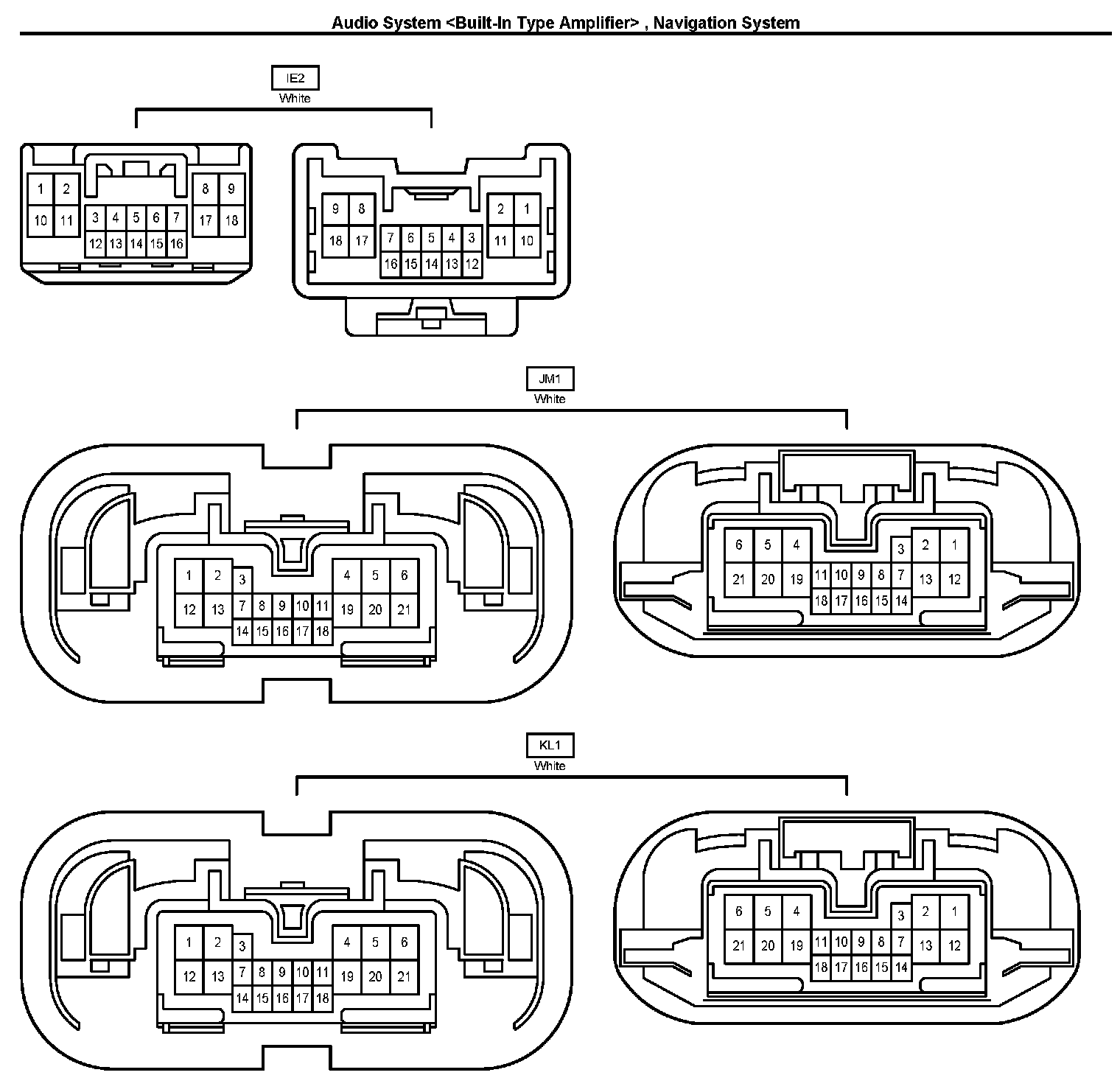

Connectors Part 1:

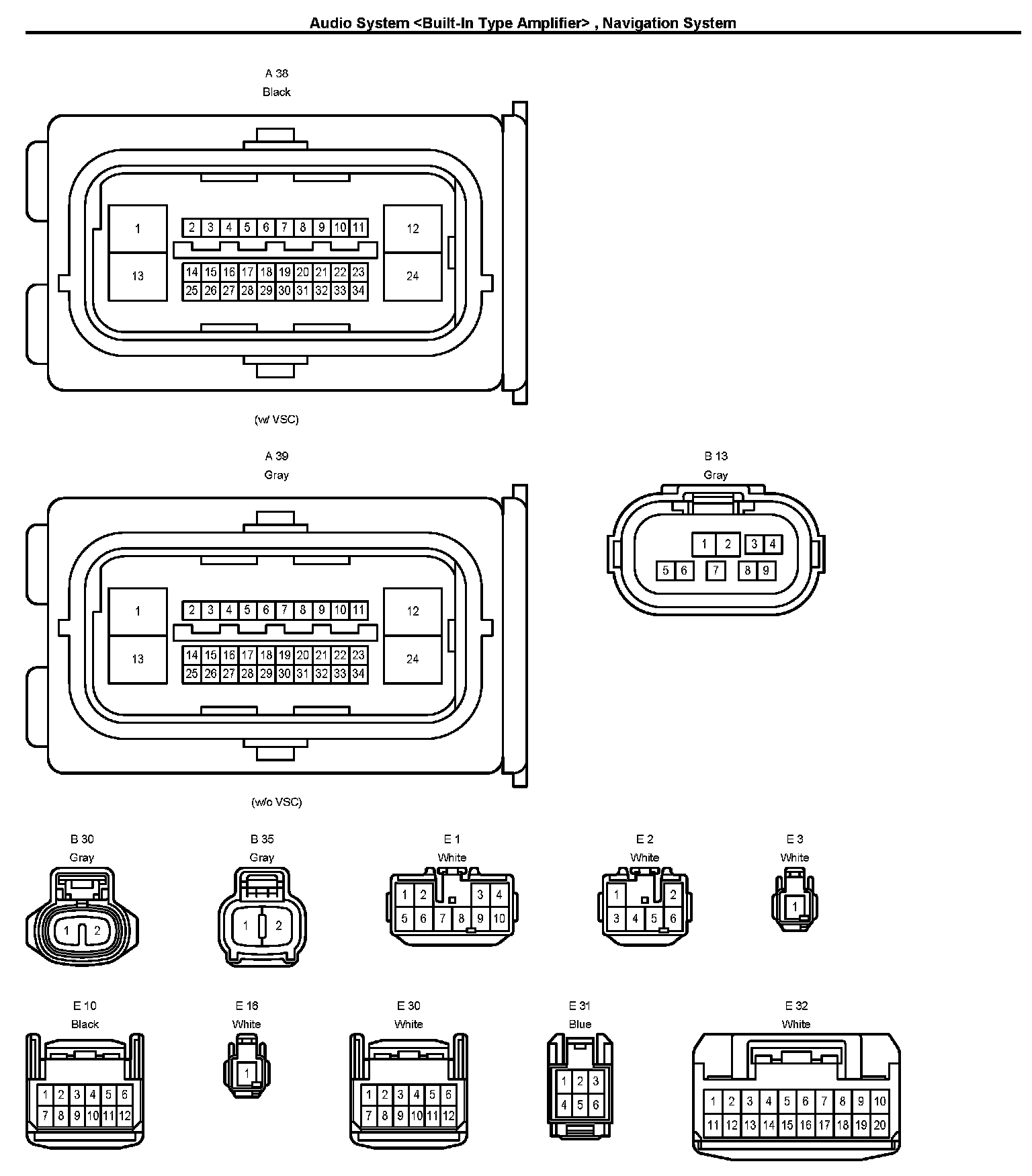

Connectors Part 2:

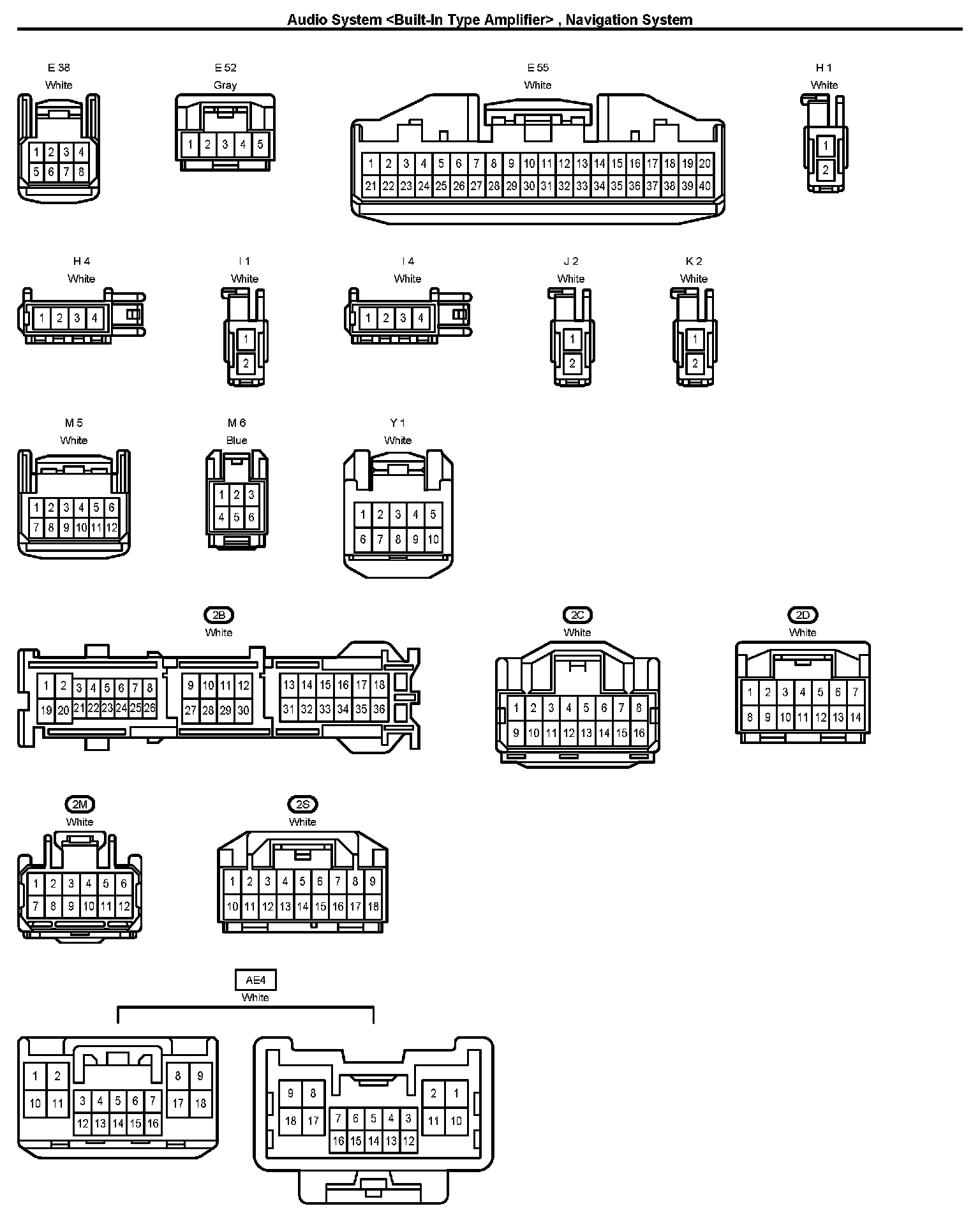

Connectors Part 3:

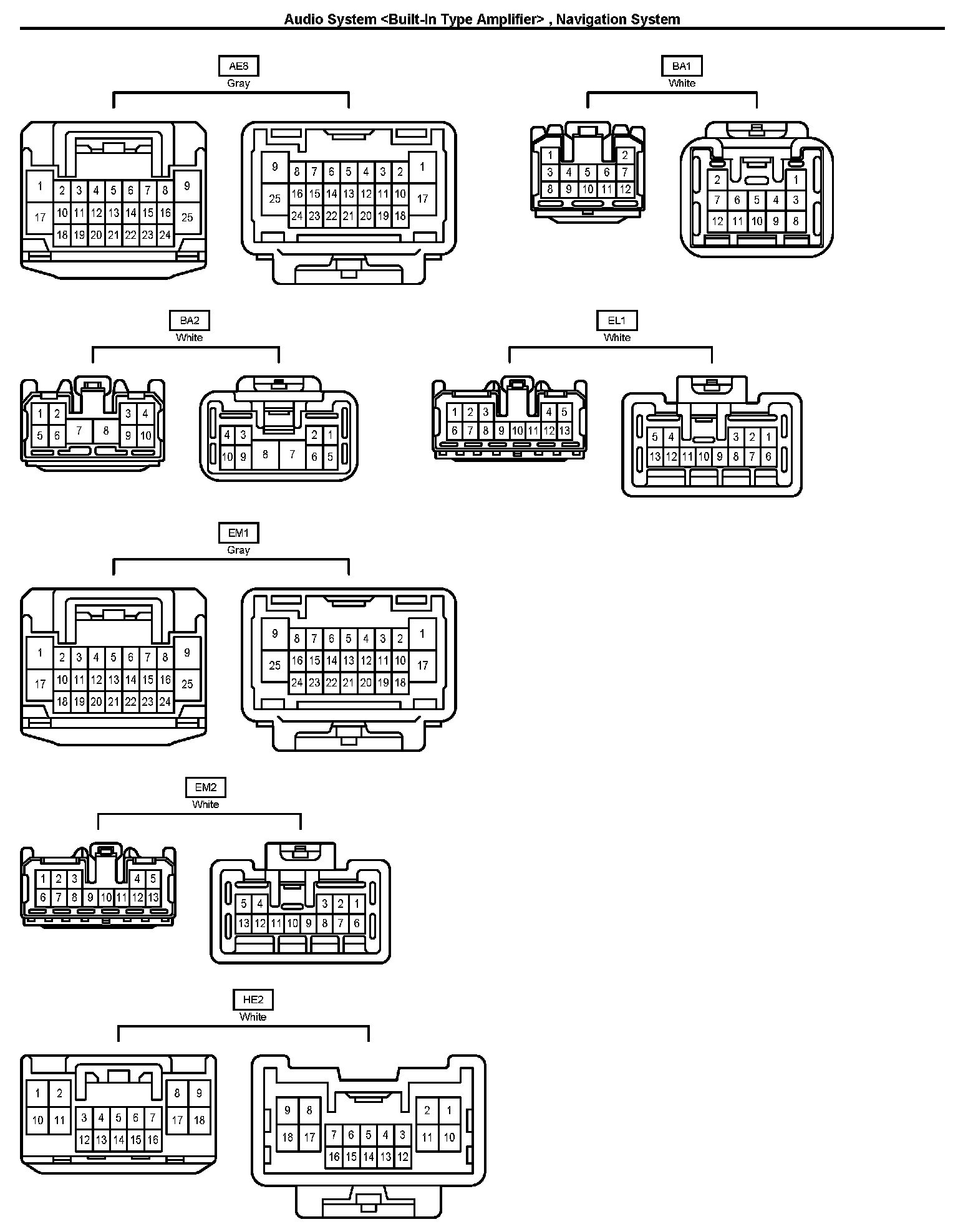

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
