Removal








HEATING / AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: REMOVAL

REMOVAL

1. REMOVE FRONT NO. 1 CONSOLE BOX INSERT Removal
2. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY





(a) Disconnect the connector.
(b) Remove the screw.

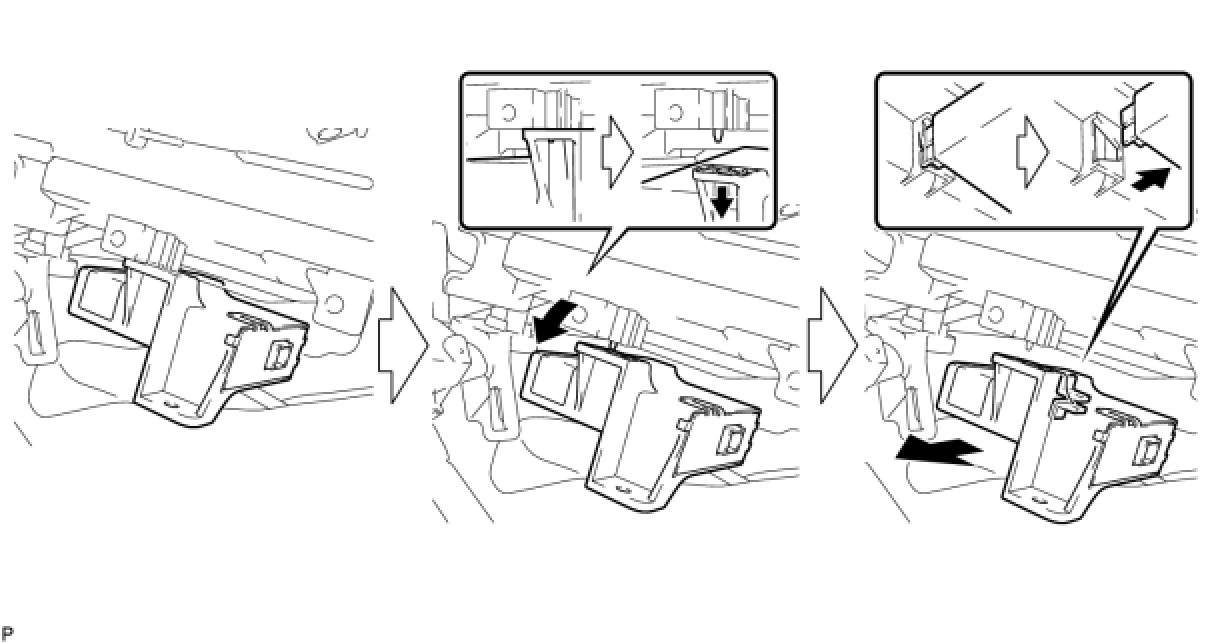

(c) Remove the air conditioning amplifier assembly as shown in the illustration.
