Emission Control Systems: Locations








2AZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION

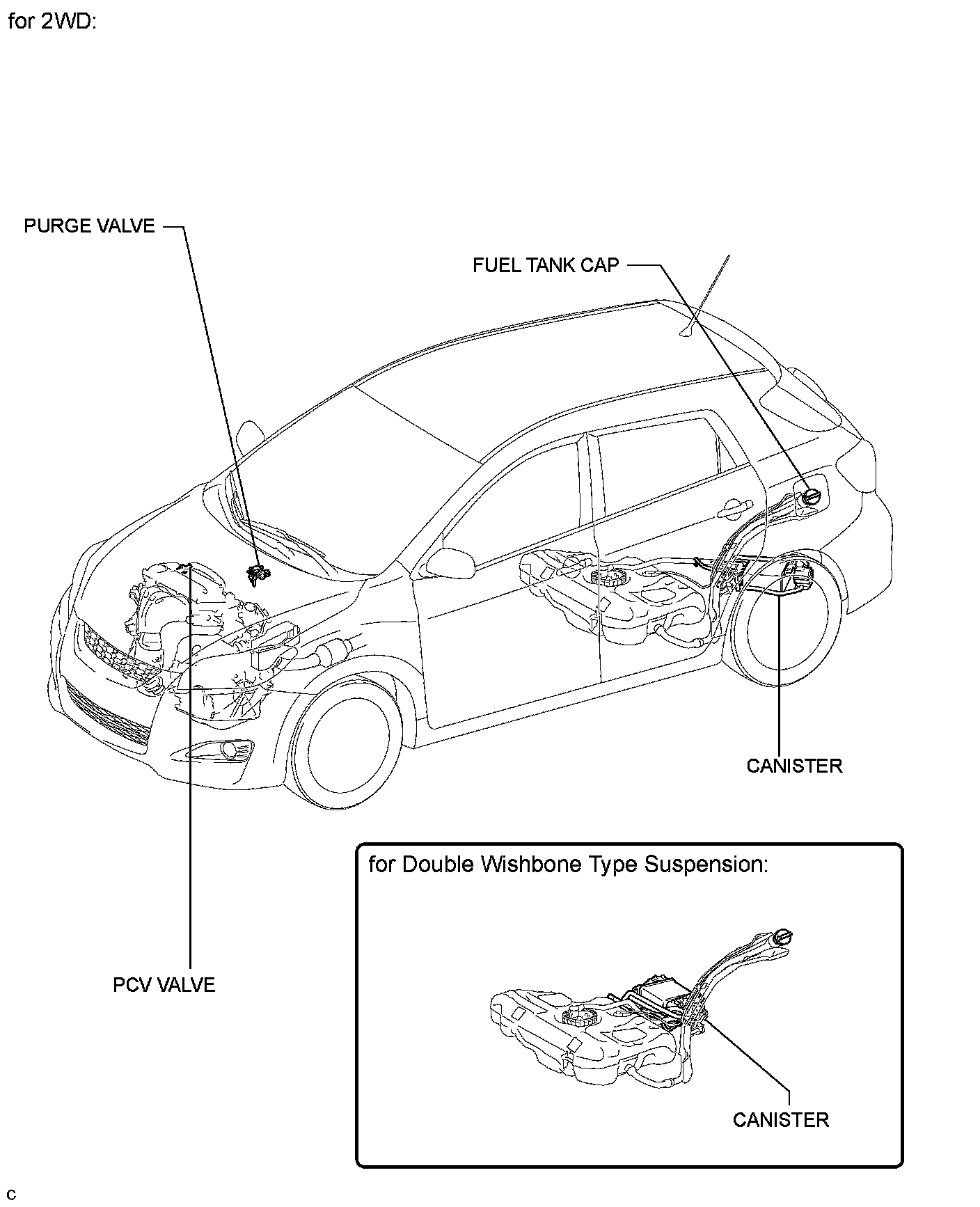

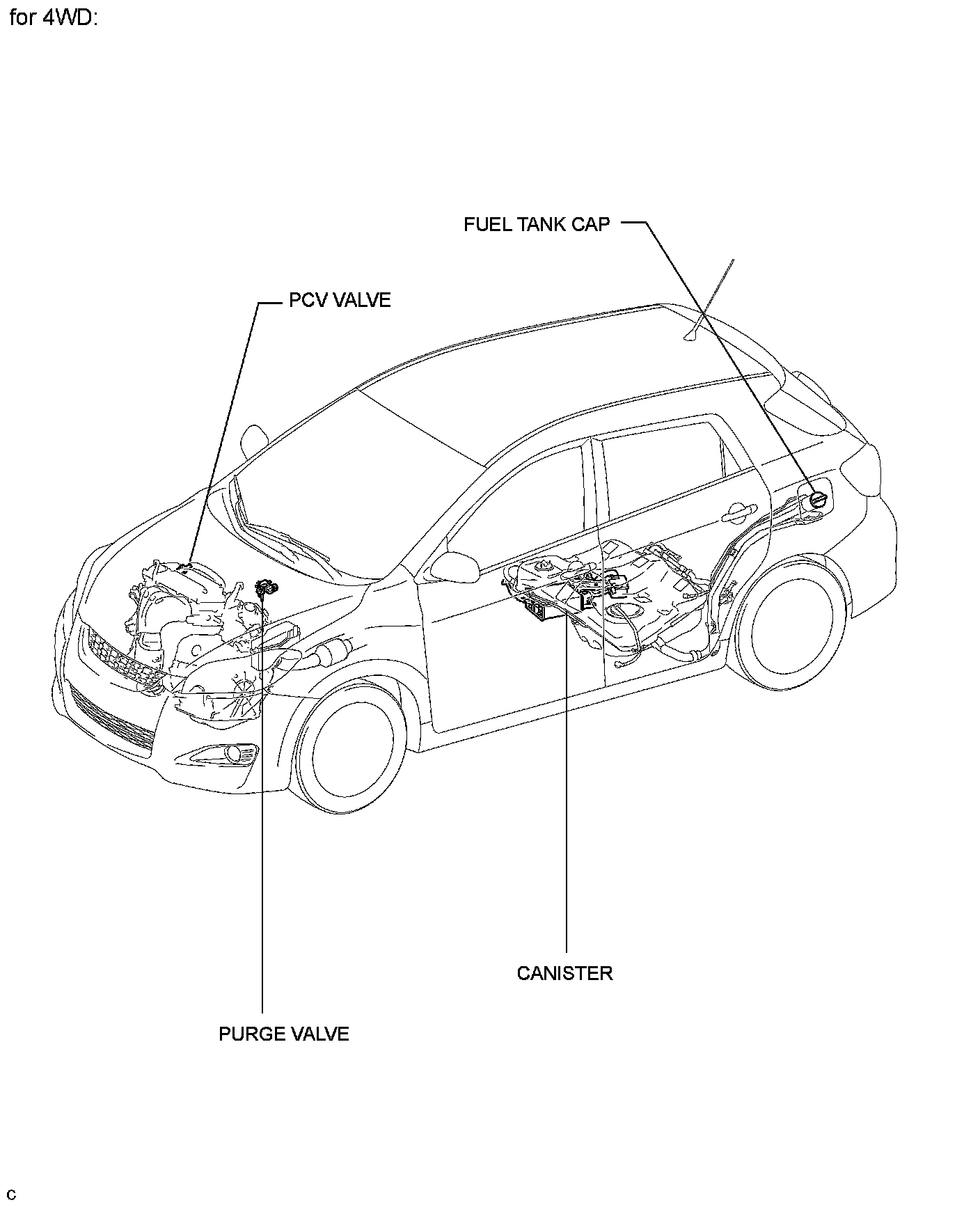

PARTS LOCATION

ILLUSTRATION
