Transmission Control Systems: Locations

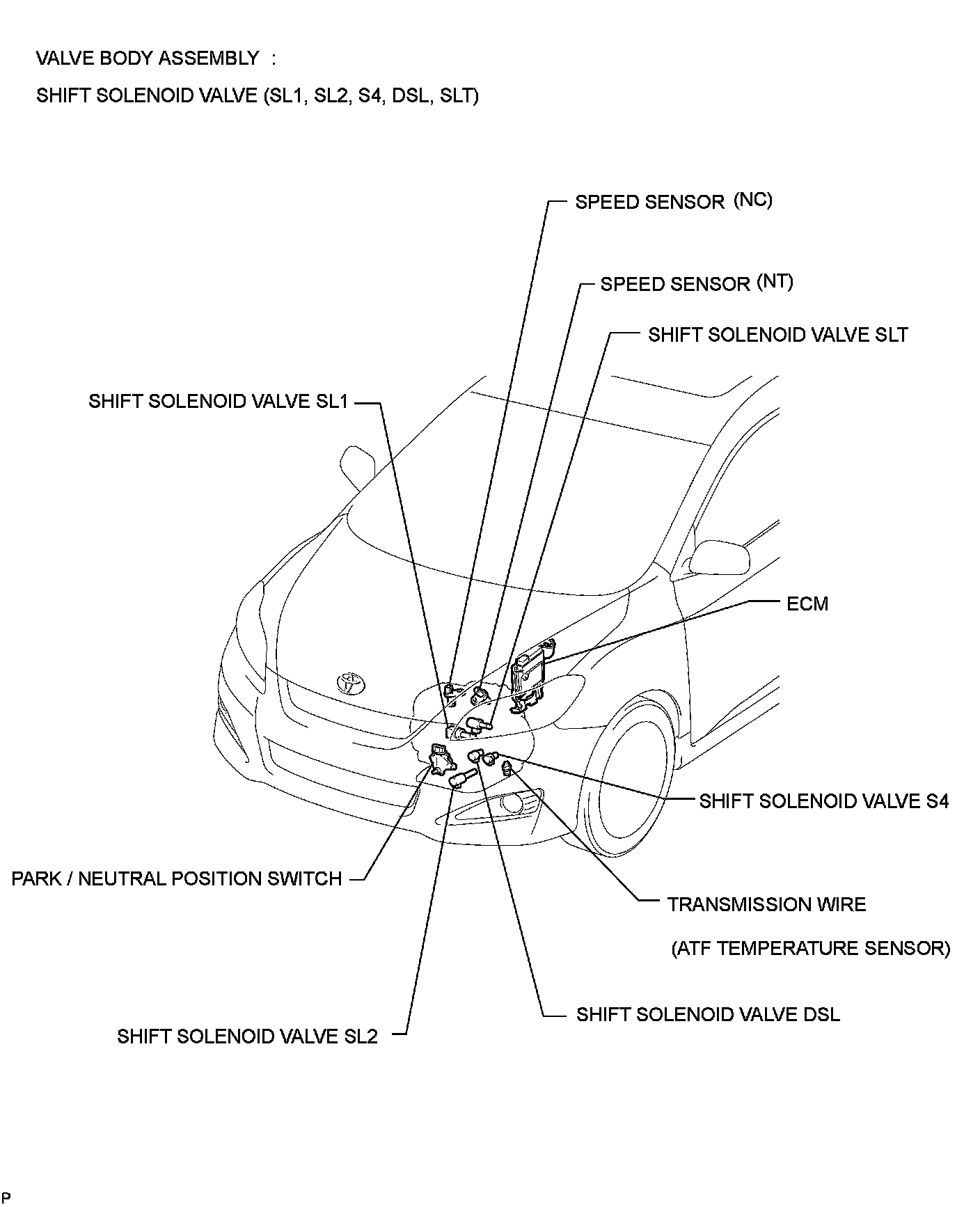

U140F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
