ABS (Antilock Brake System)

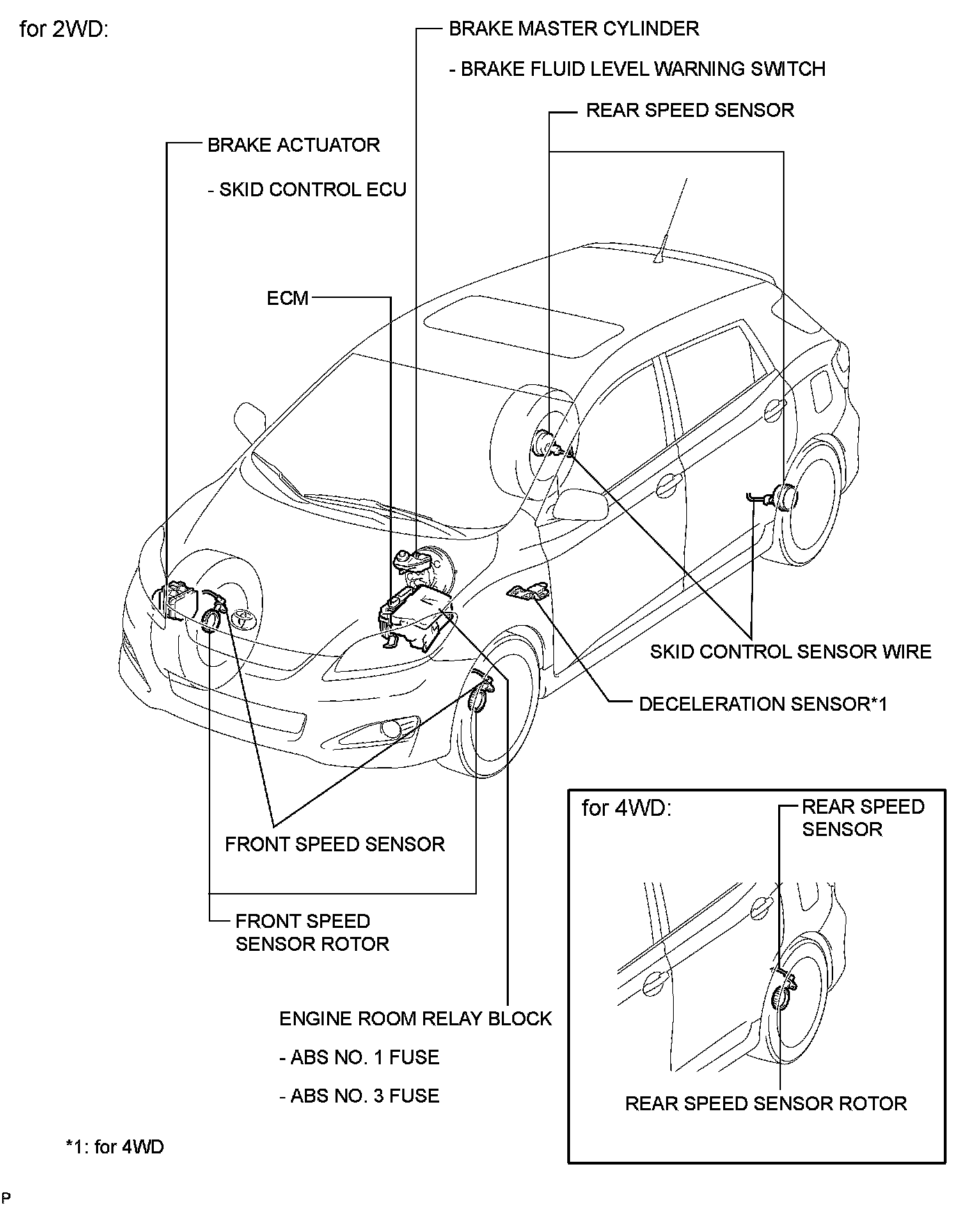

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: ANTI-LOCK BRAKE SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
