Installation

2AZ-FE STARTING: IGNITION SWITCH: INSTALLATION

INSTALLATION

1. INSTALL IGNITION SWITCH ASSEMBLY

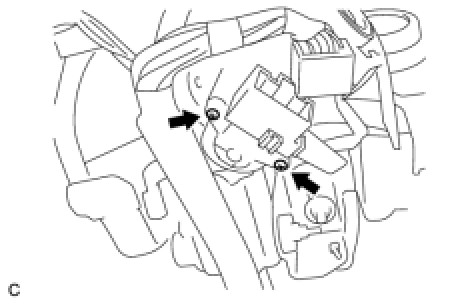

(a) Install the ignition switch with the 2 screws.

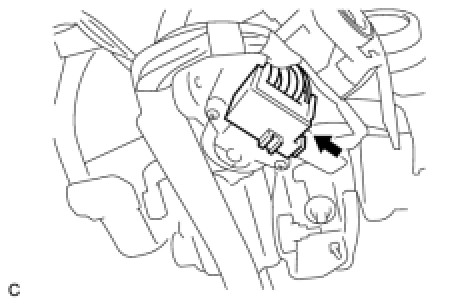

(b) Connect the connector.
2. INSTALL UPPER STEERING COLUMN COVER Installation
3. INSTALL LOWER STEERING COLUMN COVER Installation
4. ADJUST SPIRAL CABLE Installation
5. INSTALL STEERING WHEEL ASSEMBLY Installation
6. INSTALL STEERING PAD Installation
7. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation
8. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation
9. INSPECT STEERING WHEEL CENTER POINT
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. INSPECT STEERING PAD Installation
12. CALIBRATE TORQUE SENSOR ZERO POINT Programming and Relearning
13. INSPECT SRS WARNING LIGHT Diagnosis System
