POWER ASSIST SYSTEMS: POWER STEERING ECU: REMOVAL

REMOVAL

1. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
HINT: Removal

2. REMOVE POWER STEERING ECU ASSEMBLY





(a) Separate the wire harness clamp from the power steering ECU assembly.
(b) Disconnect the connector from the power steering ECU assembly.

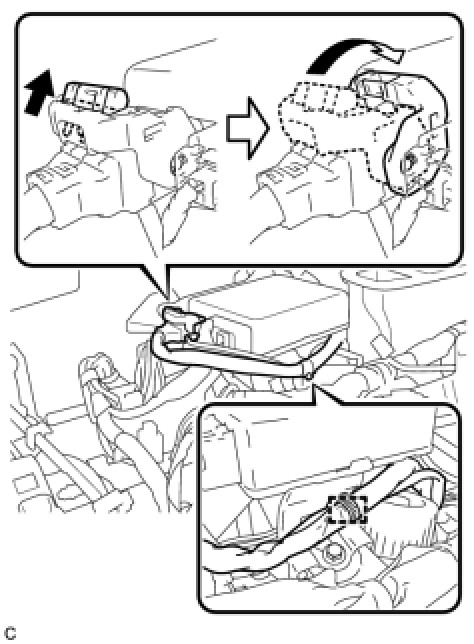

HINT: As shown in the illustration, pull out the lock of the lock lever and raise the lock lever to disconnect the connector.





(c) Disconnect the 3 connectors from the power steering ECU assembly.





(d) Remove the bolt, 2 nuts, and the power steering ECU assembly.
