Key Lock-in Prevention Function does not Work Properly: Wiring Diagram

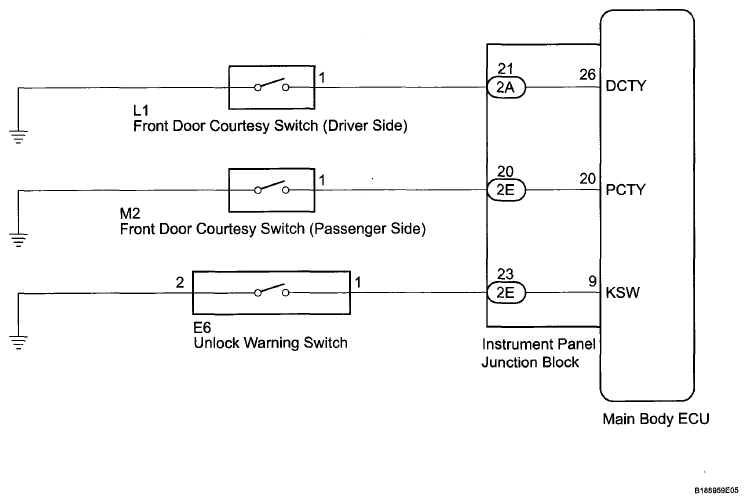

Fig 1: Front Door Courtesy Switch - Wiring Diagram
G06036323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
