Only Wireless Control Function is Inoperative: Wiring Diagram

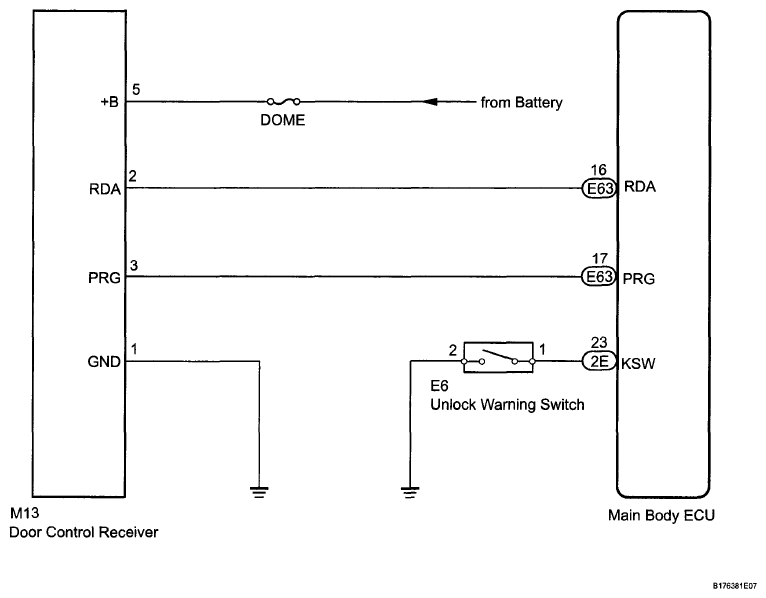

Fig 1: Door Control Receiver - Wiring Diagram
G06036343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
